COL-02000-040-12-1C-AL - Datasheet
MBA
Category Information

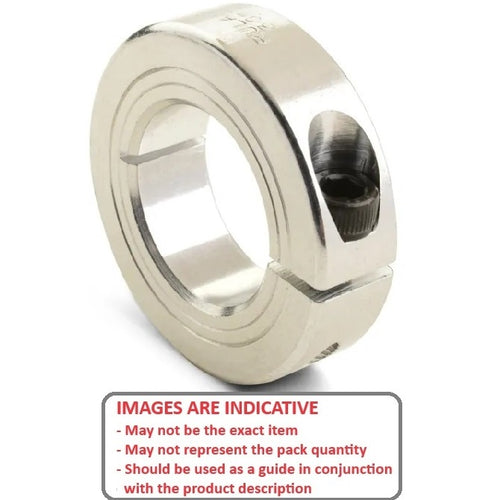

Collars - Shaft - Clamp Type - One Piece - AluminiumAluminium One Piece Clamp Type Shaft Collars. This is the main category in this series
Product Data

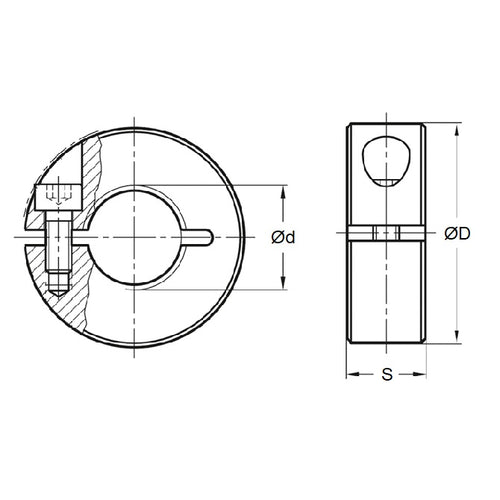

- Suitable Shaft Size (d)
:
20.000
mm
+ 0.01 / + 0.05
(Equiv. 0.787 in.) - Outside Diameter (D)
40.00
mm
(Equiv. 1.575 in.) - Overall Width (S)
12.0
mm
(Equiv. 0.472 in.) - Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-SCSAW20-12
- CSCSAW2012
