Miniature Bearings Australia
CFB020-25-060M-R70 - Datasheet
MBA
Category Information

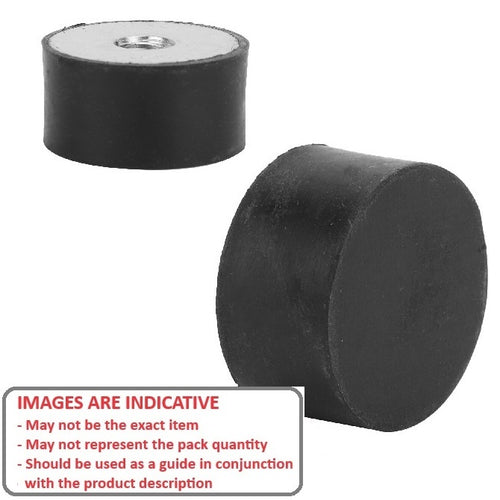

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data

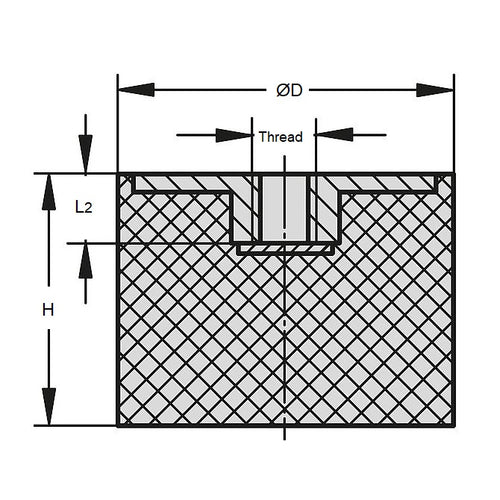

- Nom. Body Diameter (D) : 20.0 mm
- Body Height (H) 25.0 mm
- Thread Size M6x1
- Shore Hardness 70
- Compression Load 57 Kg (lbs)
- Deflection 6.3 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 2025FFB0670
- 2025FFB06-70
