CMF020-20-060M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 20.0 mm
    (Equiv. 0.787 in.)
  • Body Height (H) 20.0 mm
    (Equiv. 0.787 in.)
  • Thread Size M6x1
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 18.0 / 6.0 mm
  • Compression Load 13.4 (29) Kg (lbs)
  • Deflection 1.6 mm
  • Max Shear Load 2 (4.4) Kg (lbs)
  • Configuration Male to Female
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Trelleborg 20-01265
  • Misumi C-VD2020-18
  • V12Z02MMF202016
  • CVD202018
  • 2001265
View full details

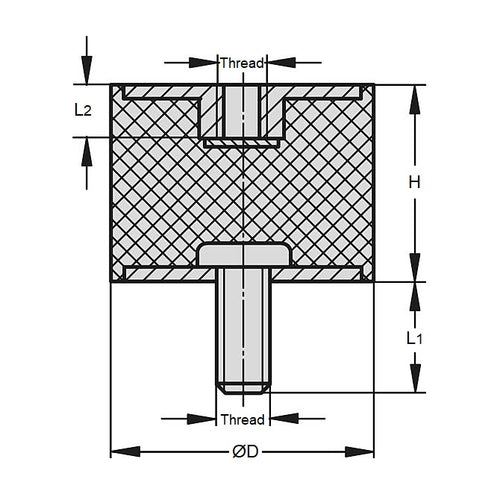

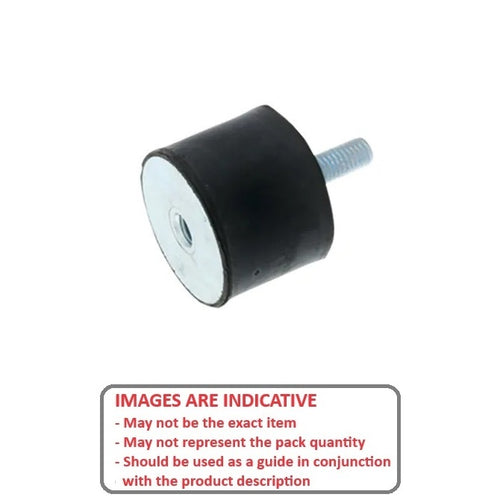

CMF020-20-060M-R60DiagramCMF020-20-060M-R60Image
