Miniature Bearings Australia
CFB020-15-060M-R70 - Datasheet
MBA
Category Information

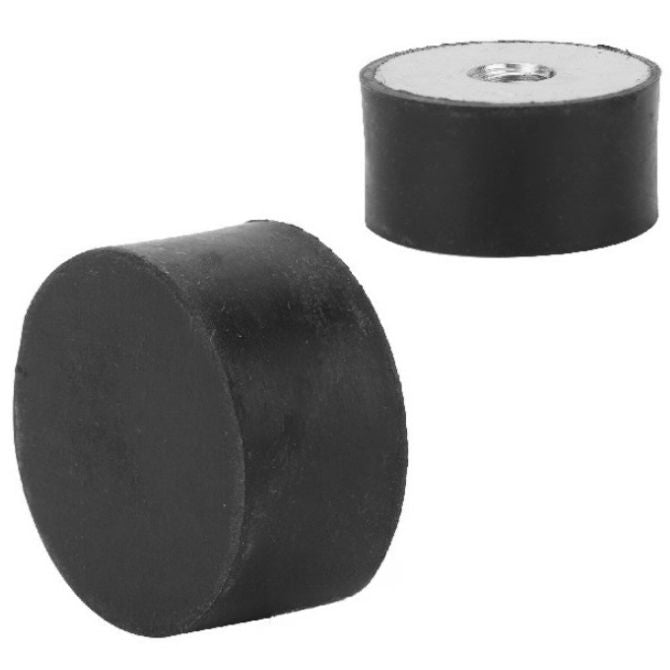

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D) : 20.0 mm
- Body Height (H) 15.0 mm
- Thread Size M6x1
- Shore Hardness 70
- Compression Load 72 Kg (lbs)
- Deflection 3.8 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 2015FFB06-70
- 2015FFB0670
