CMF020-15-060M-R60 - Datasheet

MBA

Category Information

Mounts - Bobbin - Male to Female

Male to Female Bobbin Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 20.0 mm
    (Equiv. 0.787 in.)
  • Body Height (H) 15.0 mm
    (Equiv. 0.591 in.)
  • Thread Size M6x1
  • Shore Hardness 60
  • Thread Length/Depth (L1/L2) 18.0 / 6.0 mm
  • Compression Load 17.5 (37) Kg (lbs)
  • Deflection 1.2 mm
  • Max Shear Load 2 (4.4) Kg (lbs)
  • Configuration Male to Female
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-VD2015-18
  • CVD201518
  • B-ZY-6-20-15
  • BZY62015
View full details

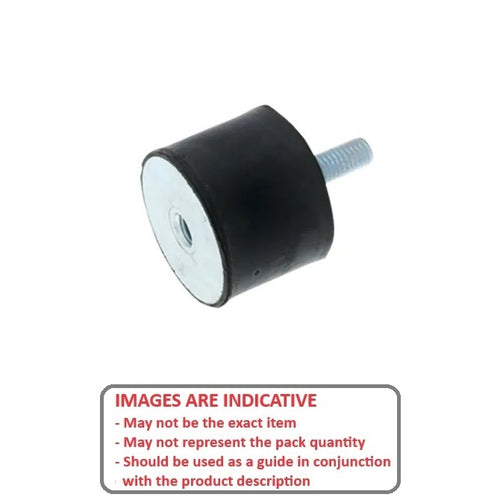

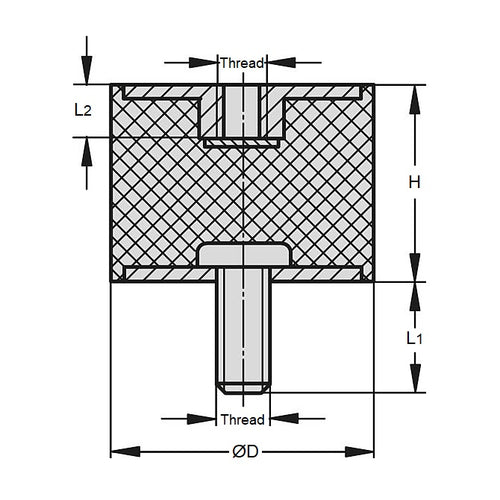

CMF020-15-060M-R60DiagramCMF020-15-060M-R60Image
