SI-022-095 - Datasheet
MBA
Category Information

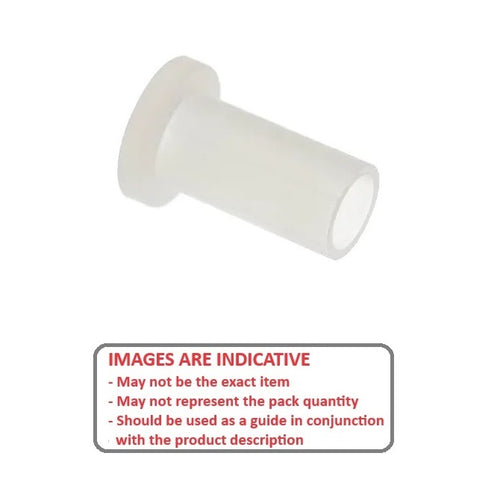

Insulators - ScrewScrew Insulators. Non-conductive, non-corrosive, light weight, self-sealing and self-locking.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 2 UNC/UNF (2.18mm)

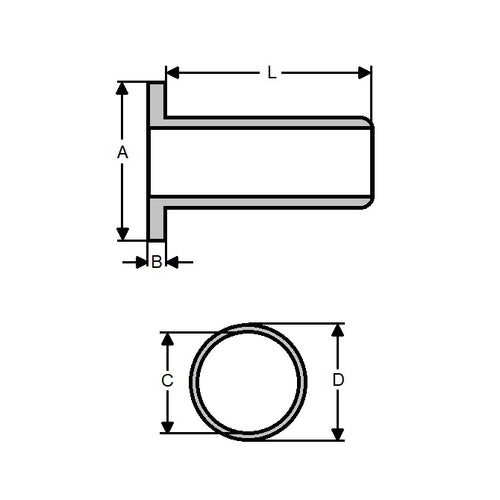

- Shank Length (L)
9.525
mm
(Equiv. 0.375 in.) - Bore Size (C)
2.286
mm
(Equiv. 0.09 in.) - Shank Diameter (D) 3.048 mm
- Flange Diameter (A) 4.597 mm
- Flange Thickness (B) 1.191 mm
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- 91145A118
- A 9M70-0637
- A9M70-0637
- A9M700637
