Miniature Bearings Australia

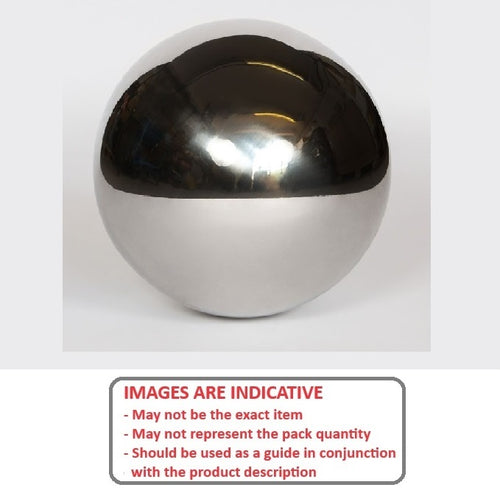

BL-00200-TC-G25 - Datasheet
MBA
Category Information
Balls - Metallic - Tungsten CarbideTungsten Carbide Metallic Balls. Extreme hardness and wear resistance.
- Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
- General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
- For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
- Hardness: Rockwell A: 91.5 (Approx 77 Rockwell C).
- Extreme hardness and wear resistance.
- Specific Gravity: 14.95.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
2.000
mm
+/- 0.00254
(Equiv. 0.079 in.) - Material Tungsten Carbide - 6% Nickel Binder
- Precision AFBMA Grade 25
- Hardness 91.5 Rockwell A
- Properties Extreme hardness and wear resistance.
- Colour Dull Grey
- Specific Gravity 14.95
- Ovality +/-0.000635
- Material Tungsten Carbide - 6% Nickel Binder
Product Compliance and Data
Additional Resources
Applications & Uses
- RC Car Parts
- Associated - RC10 - T3 1/10 - Diff Balls
- Tenth Technology - Predator 4WD - Diff Balls
Cross References
- Associated 6574
- 9686K82
- Small Parts BTC-2M
- BTC2M
