HDP029-13R-S4 - Datasheet
NoCor
Category Information

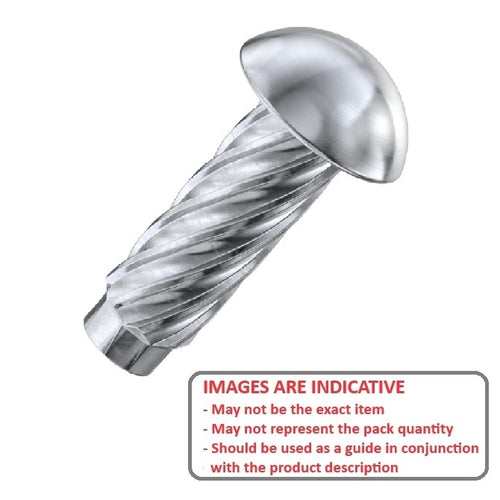

Pins - Hammer Drive - Round Head Stainless SteelRound Head Stainless Steel Hammer Drive Pins. Used to replace screws where the need to remove the pin is unlikely.
- Stainless Steel 304 Grade
- Simple, low cost assembly.
- Secure - unlike a machine screw, a drive stud does not depend on tightening torque to be retained in the assembly.
- Drive studs do not require lock washers to prevent back-out.
- Designed for standard metric hole sizes and installation by hammer or press. Cold formed pins with helical knurls.

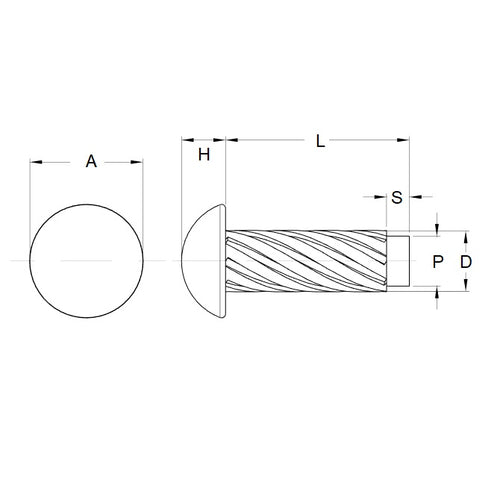

Product Data
- Min Hole Diameter
:
2.95
mm
(Equiv. 0.116 in.) - Approx. Length (l)
12.7
mm
(Equiv. 0.5 in.) - Max Hole Dia.
3.05
mm
(Equiv. 0.12 in.) - Approx Pin Diameter (d1) 3.56 mm
- Max Head Diameter (d2) 6.60 mm
- Max Head Thickness (h) 2.62 mm
- Nom. Pilot Length 1.6 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best V93155
