ECL-0022-0028-CZ - Datasheet
MBA
Category Information

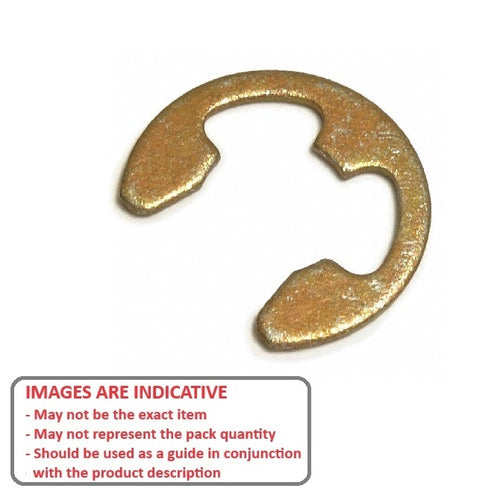

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
2.79
mm
+ 1.02 / - 0.00
(Equiv. 0.11 in.) - Groove Dia. (Dg)
2.18
mm
+ 0.051 / - 0.000
(Equiv. 0.086 in.) - Clip Thickness (T)
0.56
mm
+/ - 0.051
(Equiv. 0.022 in.) - Clip OD Loose (D1) 7.16 mm
- Groove Width (W) 0.64 mm
- Maximum Rec. Shaft Dia (S) 3.81
- Clip OD in groove (C1) 7.54 mm
- Additional Info Special Type C
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98407A115
- NoCor A15C-086ZP
- A1500-C086
- A15C086ZP
- A1500C086
