ECL-0020-0028A-C - Datasheet
MBA
Category Information

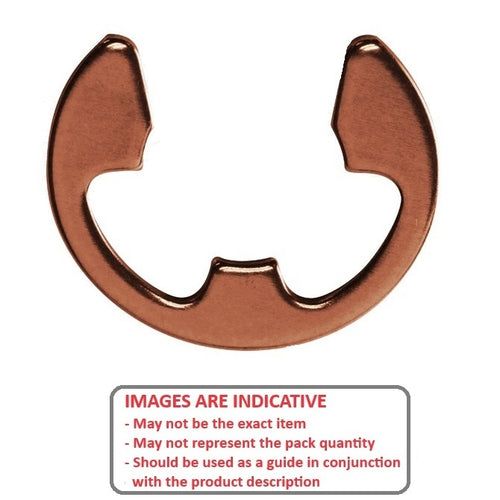

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
2.79
mm
+ 1.02 / - 0.00
(Equiv. 0.11 in.) - Groove Dia. (Dg)
2.01
mm
+ 0.051 / - 0.000
(Equiv. 0.079 in.) - Clip Thickness (T)
0.38
mm
+/ - 0.050
(Equiv. 0.015 in.) - Clip OD Loose (D1) 9.53 mm
- Groove Width (W) 0.61 mm
- Maximum Rec. Shaft Dia (S) 3.81
- Clip OD in groove (C1) 9.91 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- N1500-X011
- N1500X011
