DB83RS - Datasheet
MBA
Category Information

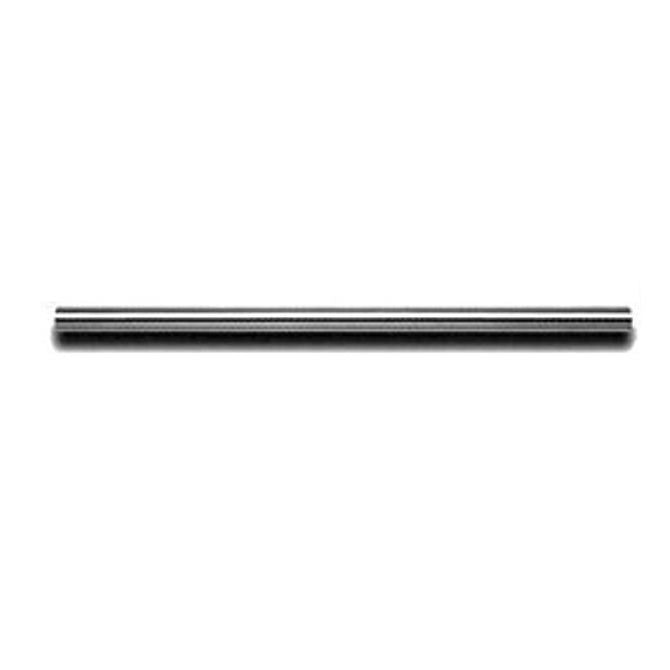

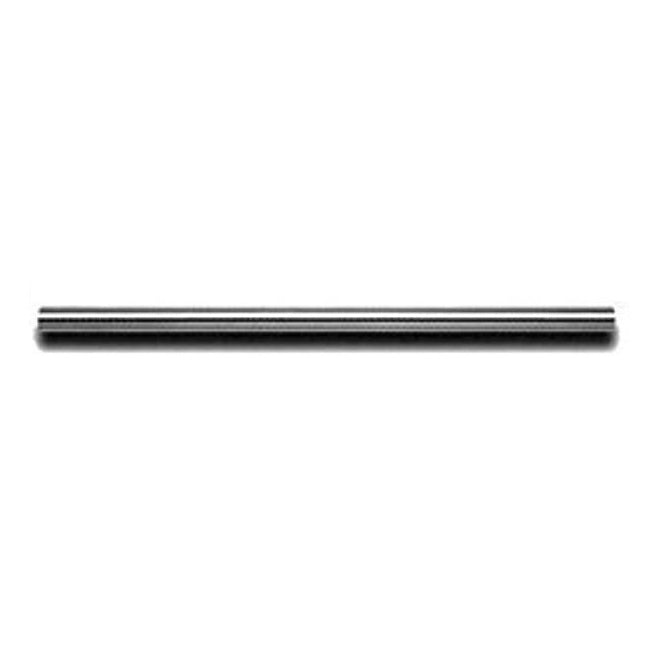

Rod - Drill BlanksDrill Blanks Rod. Made of hardened high speed steel.
- Useful for turning and boring tools, constructing pins, hinge pins, arbors, pin gauges, dowels, preforating punchs.
- Can also be ground to make special cutting tools such as mills, spotfaces, angle or radii cutters, etc.
Product Data

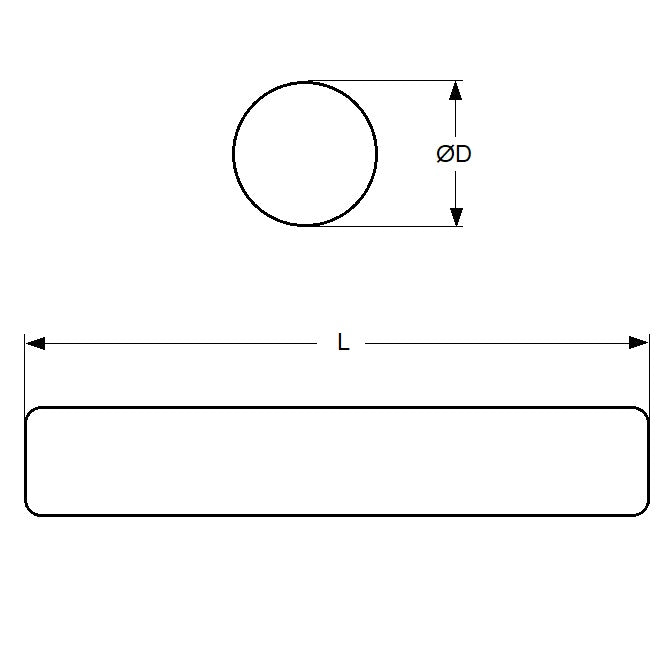

- Nominal Diameter
:
2.705
mm
+ 0.000 / - 0.013
(Equiv. 0.106 in.) - Length
63.50
mm
(Equiv. 2.5 in.) - Letter / Number No 36
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 3009A249
- DB-83
- DB83
