MAG-BK-03-10-022-C - Datasheet
MBA
Category Information

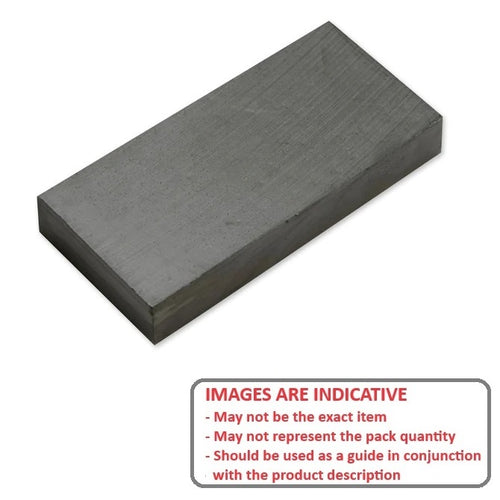

Magnets - Blocks CeramicBlocks Ceramic Magnets. Low cost, light weight, high energy material
- Non conductive hard brittle material
- Performs best at temperatures below 249 oC
- Can be cut with a diamond wheel
- Difficult to grind and can't be machined or drilled by normal methods
- Tolerance 0.13mm on all dimensions
Product Data
- Pull : 2.68 kg
- Thickness
9.52
mm
(Equiv. 0.375 in.) - Width
22.22
mm
(Equiv. 0.875 in.) - Length 47.62 mm
- Weight 0.05 kg
Product Compliance and Data
Additional Resources
Cross References
- IM467
- IM-467
