SC022F-007-C-SK-C - Datasheet
Brighton Best
Category Information

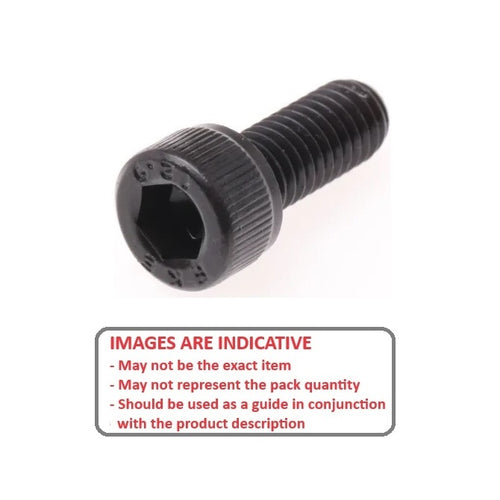

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 2-64 UNF (2.18mm)
- Thread Length (L)
7.9
mm
(Equiv. 0.311 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 2.2 mm
- Head Diameter (A Max.) 3.6 mm
- Drive Depth (E) 0.97 mm
- Shank Diameter (C) 2.09 - 2.18 mm
- Hex Key (D) 1.98 (5/64) mm
- Pitch 0.397 mm
- Threads Per Inch 64 TPI
- Min thread Length 7.9 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 581062
