Miniature Bearings Australia
DVT2-0626-HSH - Datasheet
MBA
Category Information

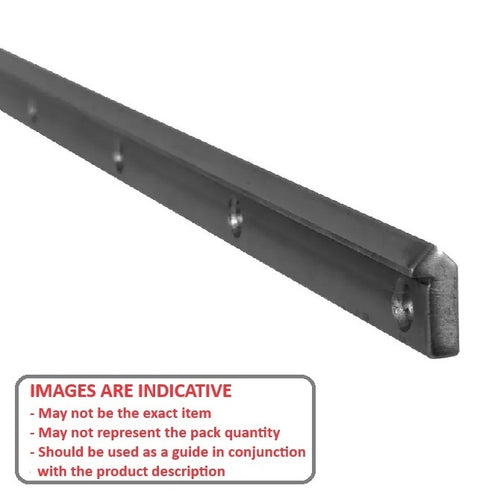

Dual Vee - Tracks - Stainless SteelStainless Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.
- Match Track Size with same size Guide Wheel.
Product Data

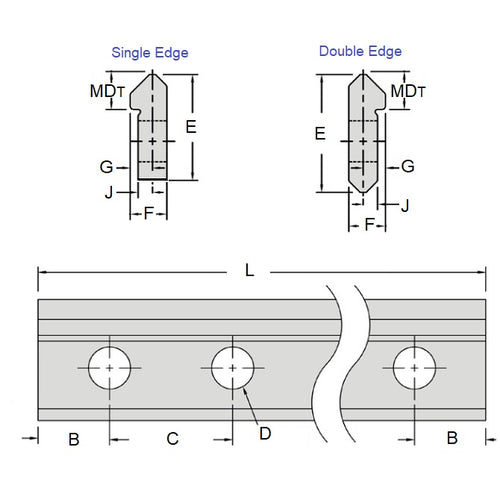

- Track Size : 2
- Overall Length (L)
625.6
mm
(Equiv. 24.63 in.) - Overall Width (F)
6.35
mm
(Equiv. 0.25 in.) - Height (E / MDT) 15.88 / 4.75 mm
- Type Single Edged
- Hole Spacing (C) 76.2 mm
- Number of Holes 9 (5.16mm)
- End Hole Spacing (B) 7.87 mm
- Condition Hardened Rc 48-50
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- WZ45
- WZ-45
- A7W1522463
- A7W15-22463
- A7W15M22463
