W0025-LE-006-004-S4 - Datasheet
MBA
Category Information

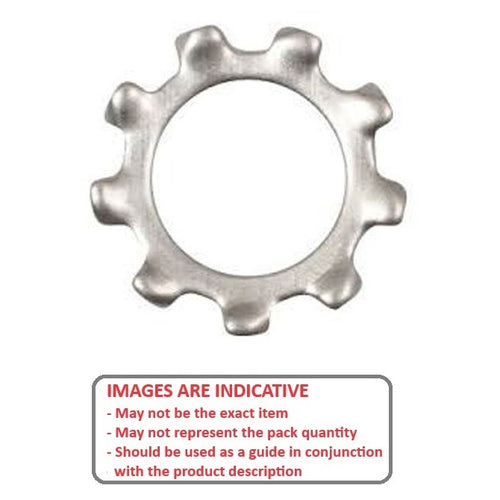

Washers - Lock - External Tooth - Stainless SteelStainless Steel External Tooth Lock Washers. Stainless steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Inside Diameter
:
2.50
mm
(Equiv. 0.098 in.) - Outside Diameter
6.4
mm
(Equiv. 0.252 in.) - Material Thickness (T)
0.40
mm
(Equiv. 0.016 in.) - Nominal Screw Size M2.5, 4-40 / 4-48, 3/32
- Actual ID (Ref) 2.8 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 95584A200
- A9X21-E04
- A9X21E04
