Miniature Bearings Australia
0R-0025-1000-BR385 - Datasheet
MBA
Category Information

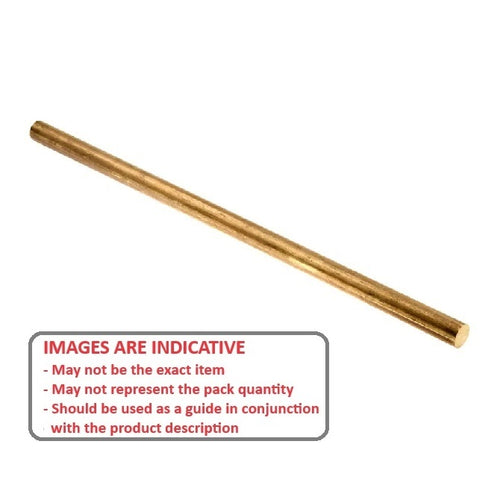

Rod - Round - BrassBrass Round Rod. For general hobby applications.
- An expanded range may be available on special order. Please enquire.
- NOTE! Very thin sizes may experience some bending. They may not be straight for the entire length.
- May be slightly oversized on OD so some reworking may be required before fitting closely mating parts such as bearings.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
- Includes K&S Metals range and more
Product Data
- Nominal Diameter (D)
:
2.50
mm
+/- 0.025
(Equiv. 0.098 in.) - Length (L)
1000.0
mm
+/- 1.0
(Equiv. 39.37 in.) - Grade Gd. 385
- Other Information Alloys 260 1/4-1/2 hard ASTM B134
- Weight 0.01 kg
- Material Brass 385
Product Compliance and Data
Additional Resources
Cross References
- KSE KS3954
