Category Information

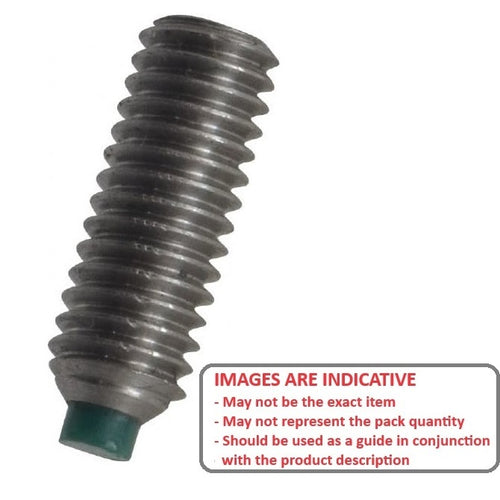

Socket Set Screws - Nylon Tipped - 304 Stainless Steel

304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Thread Size : 2-56 UNC (2.18mm)
Thread Length (L) 6.4 mm
(Equiv. 0.252 in.)
Type Nylon Tipped
Overall Length (L + L1) 7.1 mm
Tip Diameter (d) 0.8 mm
Tip Length (L1) 0.7
Pitch 0.454 mm
Threads Per Inch 56 TPI
Drive Type Socket
Material Stainless Steel 18-8 (Similar to A2, 303, 304)

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Socket Set Screws Master PDF

Measuring Small Parts
Metalworking Resource Guide

Screws & Nuts Catalogue
Shoulder Screws Catalogue
Socket Set (Grub) Screws Catalogue
Thumb Screws & Thumb Nuts Catalogue
Thread Size Chart - Combined Imperial & Metric

Cross References

90291A077
BTS915
BTS-915
