SK022C-006-SL-S4 - Datasheet
MBA
Category Information

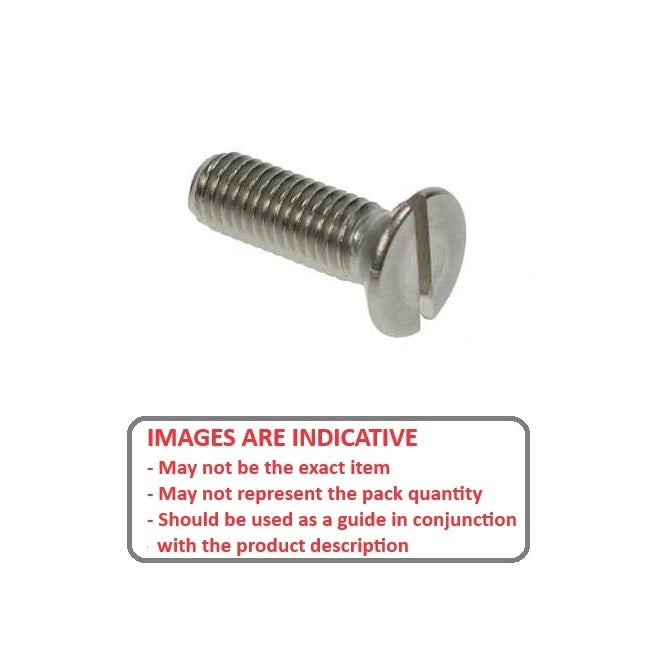

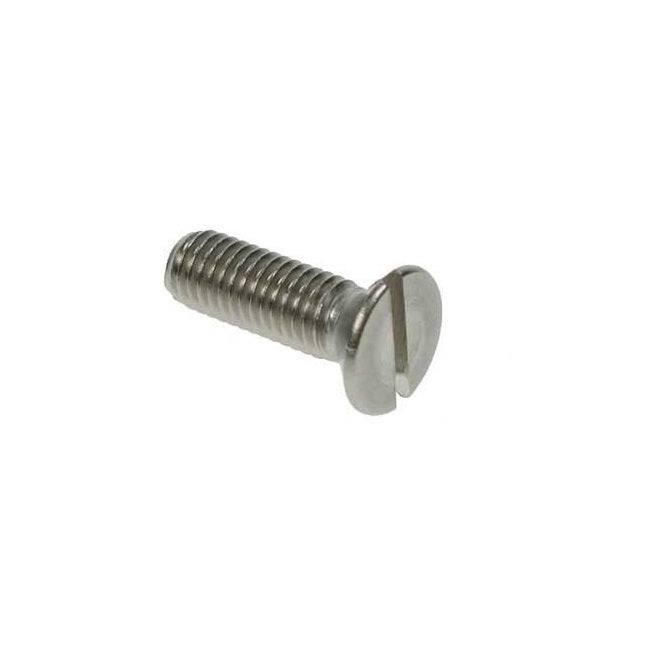

Screws - Countersunk - Slotted - 304 Stainless304 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

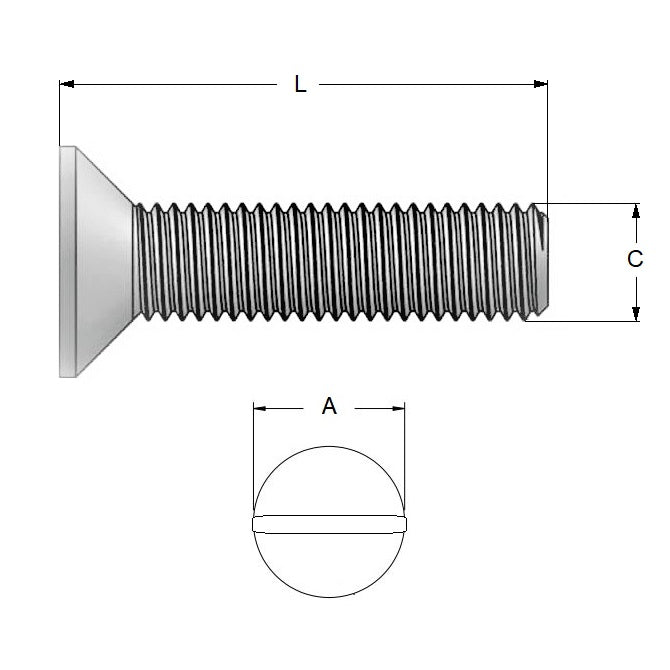

- Thread Size (C) : 2-56 UNC (2.18mm)
- Overall Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material 304 Stainless
- Max Head Diameter (A) 4.11 mm
- Max Head Height 1.29 mm
- Type Countersunk / Slotted
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91781A077
- Small Parts MX-256-4F
- A9X16-F025604
- A9X16F025604
- A 9X16-F025604
- MX2564F
