SC022C-006-C-SK-S4 - Datasheet
Brighton Best
Category Information

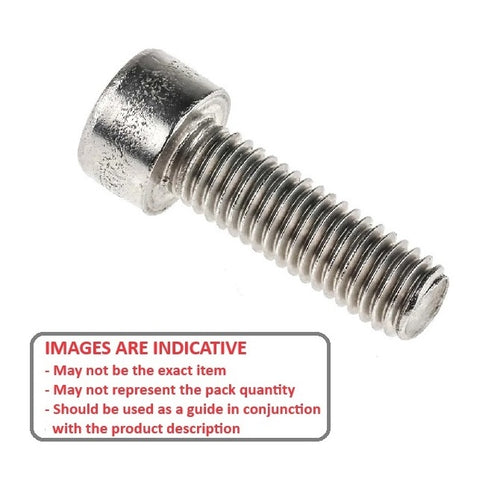

Screws - Socket Cap - Stainless - 303-304303-304 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 2-56 UNC (2.18mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material 304 Stainless
- Head Length (B Max.) 2.2 mm
- Head Diameter (A Max.) 3.6 mm
- Drive Depth (E) 0.97 mm
- Shank Diameter (C) 2.09 - 2.18 mm
- Hex Key (D) 1.98 (5/64) mm
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Min thread Length 6.4 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 012028
- 92196A077
- HK78004B
- HK-78004B
