Miniature Bearings Australia
SC022C-005-BD-SL-N - Datasheet
MBA
Category Information

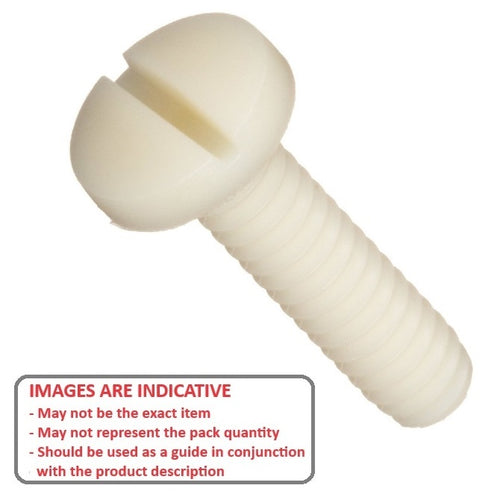

Screws - Binder Head - Slotted - NylonNylon Slotted Binder Head Screws. UNC and UNF
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data

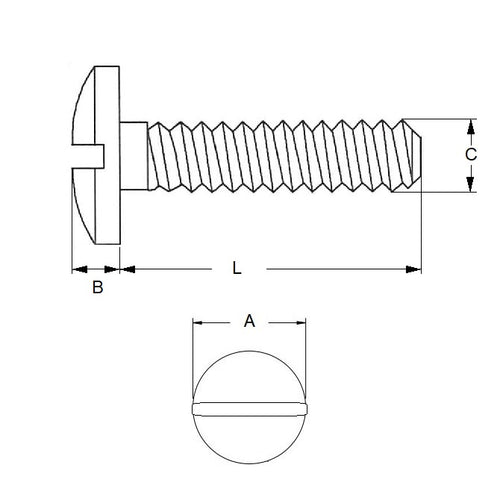

- Thread Size (C) : 2-56 UNC (2.18mm)
- Thread Length (L)
4.8
mm
(Equiv. 0.189 in.) - Material Nylon (Zytel 101)
- Max Head Diameter 4.6 mm
- Max Head Height 1.3 mm
- Type Binding / Slotted
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Small Parts MN-256-3B
- MN2563B
- A9M50-B025603
- A9M50B025603
