SC022C-003-H-BR - Datasheet

MBA

Category Information

Screws - Hex Head - Brass

Brass Hex Head Screws. Brass metal thread machine screws UNC and UNF

  • An expanded range may be available on special order. Please enquire.
  • Nuts sold seperately - See Nuts.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size (C) : 2-56 UNC (2.18mm)
  • Thread Length (L) 3.2 mm
    (Equiv. 0.126 in.)
  • Material Brass
  • Max Head Diameter 3.18 mm
  • Max Head Height 1.27 mm
  • Type Hex Head
  • Pitch 0.454 mm
  • Threads Per Inch 56 TPI
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • MicroFast HBB0202
View full details

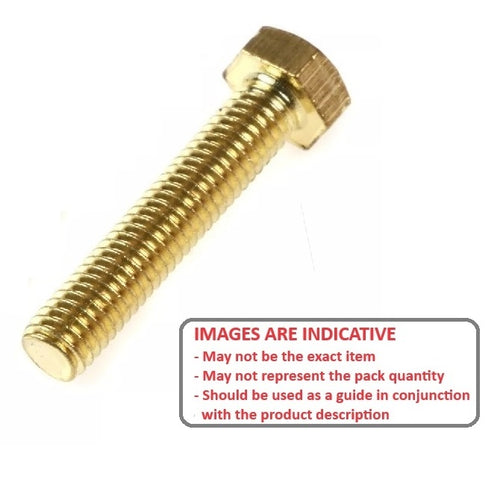

SC022C-003-H-BRDiagramSC022C-003-H-BRImage
