SC022C-019-BD-SL-N - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

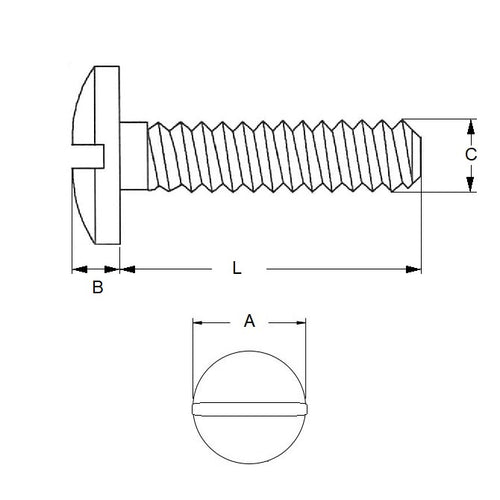

• Thread Size (C) : 2-56 UNC (2.18mm)
• Thread Length (L) 19.1 mm
  (Equiv. 0.752 in.)
• Material Nylon (Zytel 101)
• Max Head Diameter 4.6 mm
• Max Head Height 1.3 mm
• Type Binding / Slotted
• Pitch 0.454 mm
• Threads Per Inch 56 TPI
• Material Nylon (Zytel 101)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Small Parts MN-256-12B
• MicroFast NBB0212
• A 9M50-B025612
• MN25612B
• A9M50-B025612
• A9M50B025612
