RCL-025-049-ZD - Datasheet
MBA
Category Information

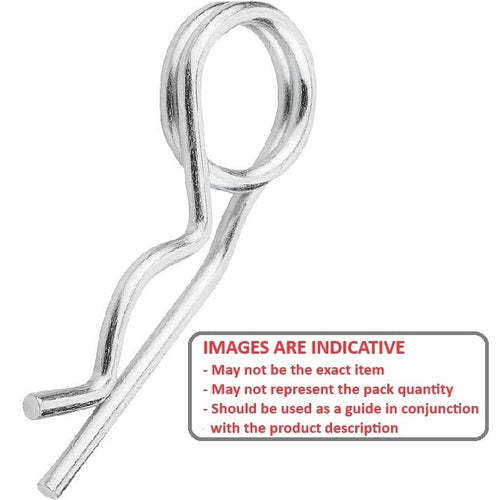

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

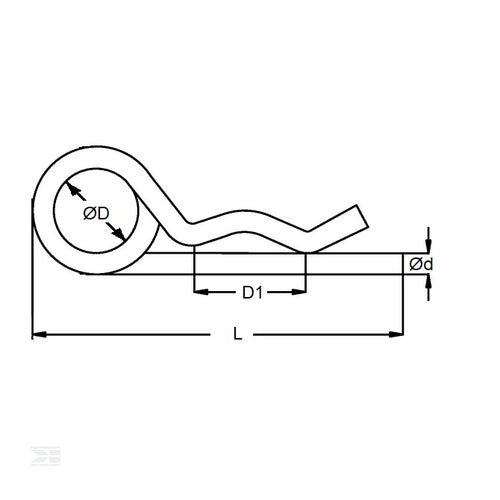

- Wire Thickness (d)
:
2.50
mm
(Equiv. 0.098 in.) - Length (L)
49.0
mm
(Equiv. 1.929 in.) - Material Zinc Plated
- Drill Hole Size 2.50 mm
- Inside Eye Diameter (D) 10.00 mm
- Shaft Size Range 8.00 to 14.00 mm
- Approx. Bridge Length (D1) 17 mm
- Material Carbon Spring Steel Zinc Plated
