RCL-024-064-Z - Datasheet
MBA
Category Information

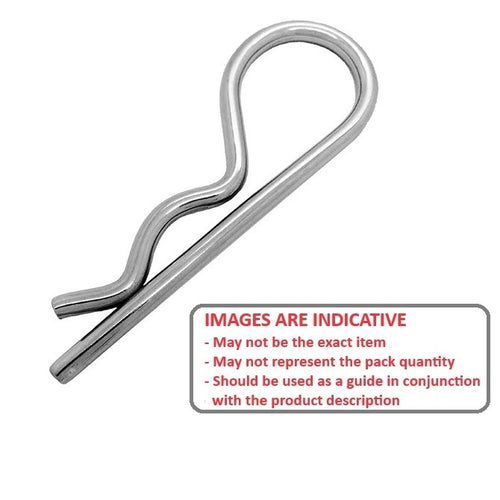

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

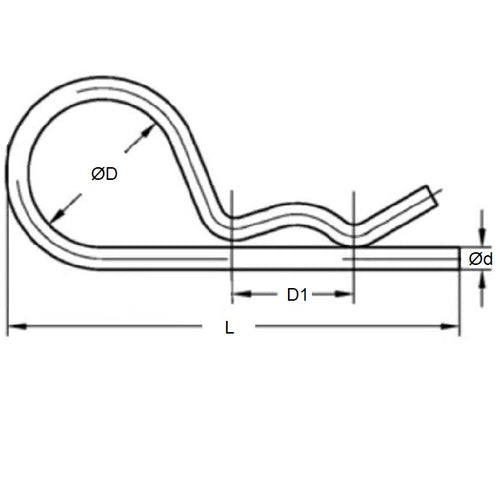

- Wire Thickness (d)
:
2.40
mm
(Equiv. 0.094 in.) - Length (L)
64.0
mm
(Equiv. 2.52 in.) - Material Spring Wire, Oil-Tempered
- Drill Hole Size 2.78 mm
- Inside Eye Diameter (D) 11.11 mm
- Shaft Size Range 9.53 to 19.05 mm
- Approx. Bridge Length (D1) 22 mm
- Material Spring Wire, Oil-Tempered Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A066
- A9Q3414
- A9Q34-14
