ECL-0018-0024D-C - Datasheet
MBA
Category Information

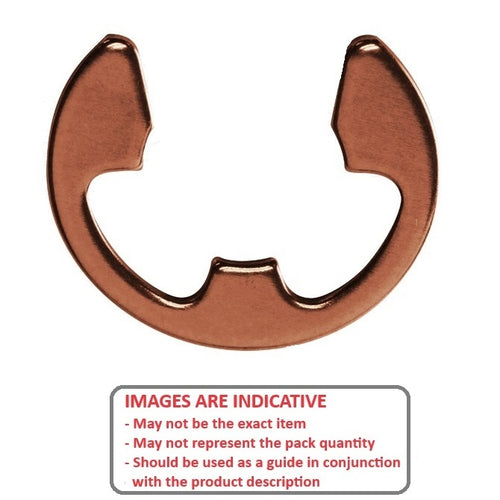

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
2.39
mm
+ 0.76 / - 0.00
(Equiv. 0.094 in.) - Groove Dia. (Dg)
1.88
mm
+ 0.051 / - 0.000
(Equiv. 0.074 in.) - Clip Thickness (T)
0.38
mm
+/ - 0.052
(Equiv. 0.015 in.) - Clip OD Loose (D1) 5.23 mm
- Groove Width (W) 0.51 mm
- Maximum Rec. Shaft Dia (S) 3.15
- Clip OD in groove (C1) 5.56 mm
- Material Carbon Steel
