PSP-024-008-C - Datasheet
MBA
Category Information

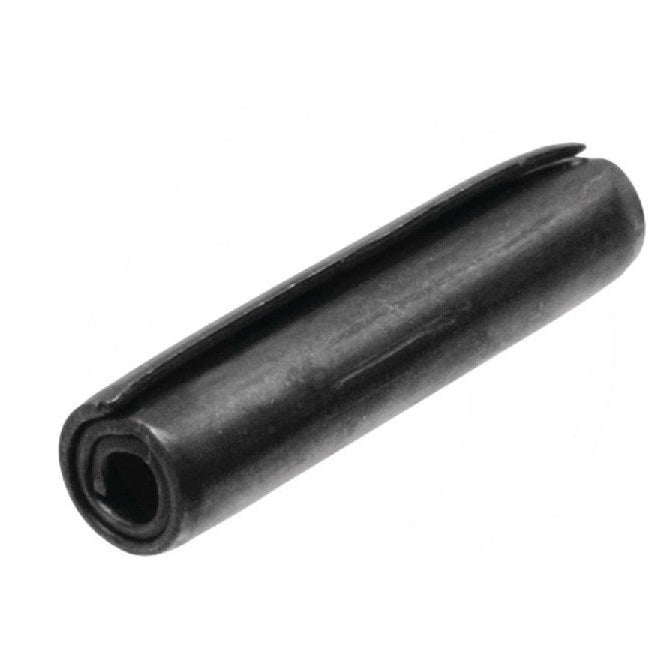

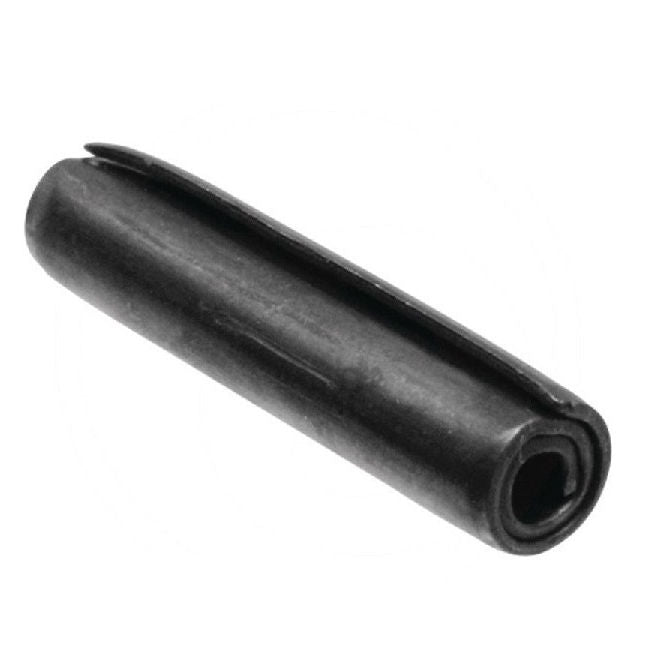

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Length
7.93
mm
+/- 0.25
(Equiv. 0.312 in.) - Drill Size
2.38 - 2.46
mm
(Equiv. 0.094 in.) - Loose Diameter 2.51 - 2.67 mm
- ISO Standard Duty ASME B18.8.2
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 4 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SPC-093-0312
