PUI024-0270-048-ZB-RS - Datasheet
MBA
Category Information
Pulleys - U Groove Idler - Single Row - SteelSteel Single Row U Groove Idler Pulleys. Steel with Steel Ball Bearings
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks
Product Data

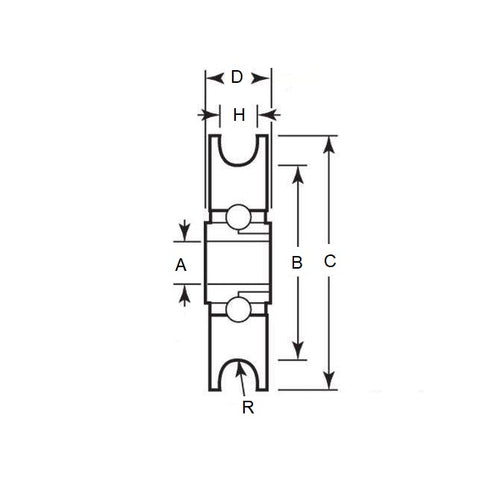

- Maximum Cable Diameter (H) : 2.38 mm
- Outside Diameter (OD) 26.99 mm
- Bore (A) 4.763 mm
- Body Width 6.35 mm
- Overall Width (OAL) 7.14
- Dia. to Base of Groove (B) 22.23 mm
- Type Precision Shielded Ball Bearing - Hardened Raceway - Heavy Duty
- Groove Radius (R) 1.32
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 3434T22
- Reid Tool® CBL-980
- A6C901706
- A6C9-01706
- CBL980
