Miniature Bearings Australia
CBLU-238-GAL-77 - Datasheet
MBA
Category Information

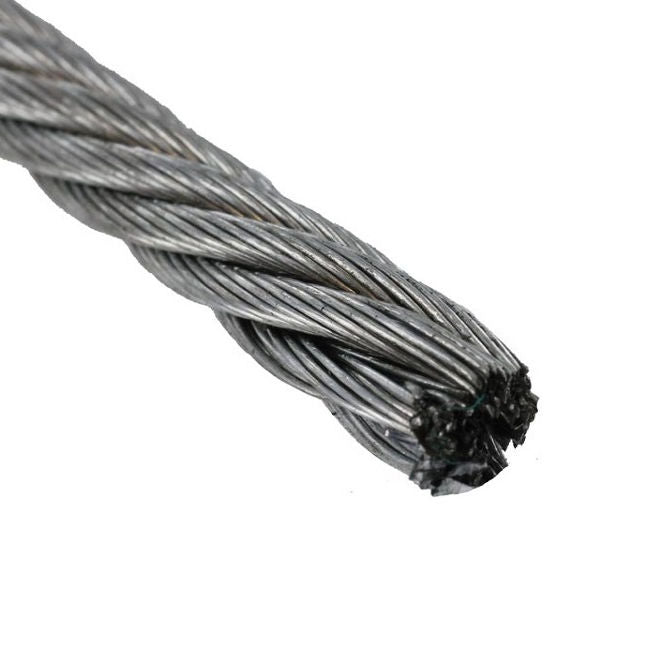

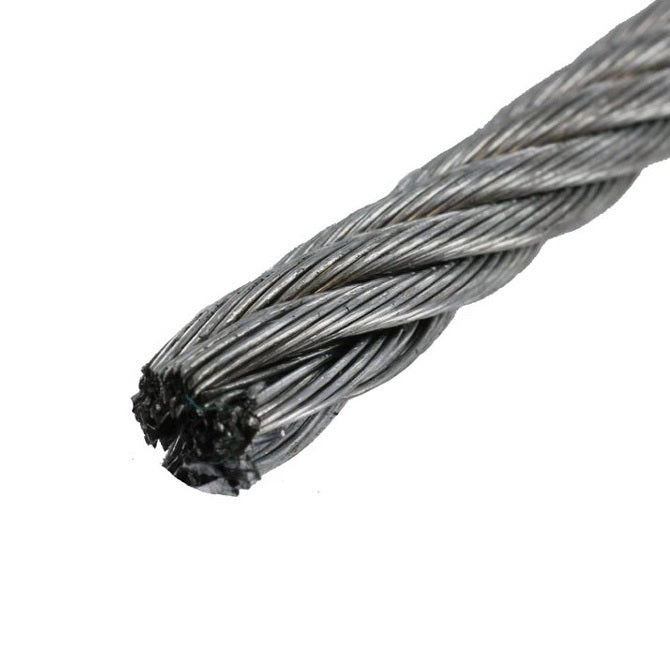

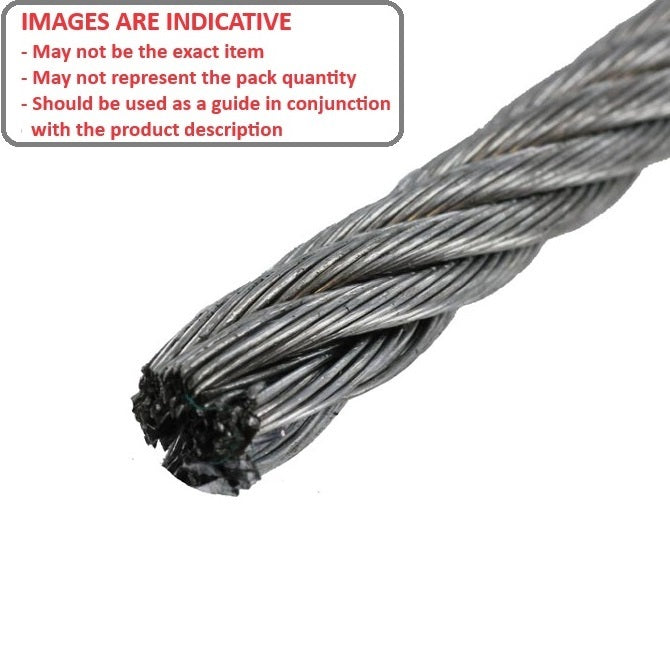

Cable and Accessories - Cable - Miniature - UncoatedUncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

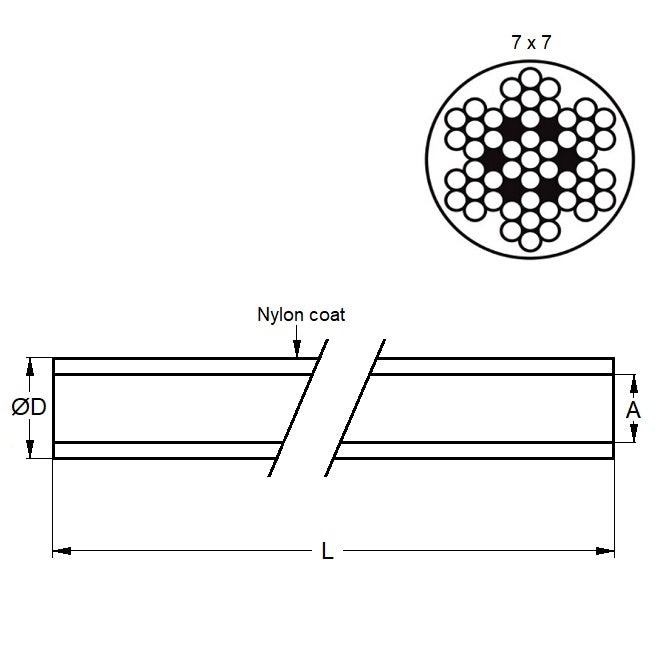

- Overall Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Cable Diameter (A)
2.381
mm
(Equiv. 0.094 in.) - Breaking Strength 417.3 kg
- Length 27 Metre Length
- Strand Type 7x7
- Material Galvanised Steel
Product Compliance and Data
Additional Resources
Cross References
- 3450T26
- CBL1085
- CBL-1085
