CBLU-238-304-719 - Datasheet
MBA
Category Information

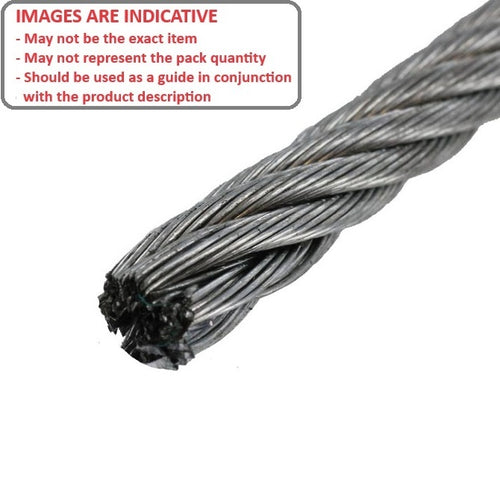

Cable and Accessories - Cable - Miniature - UncoatedUncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data
- Overall Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Cable Diameter (A)
2.381
mm
(Equiv. 0.094 in.) - Breaking Strength 417.3 kg
- Length 30 Mtr Roll
- Strand Type 7x19
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 3461T64
- CBL240
- CBL-240
