PSP-024-019H-S2 - Datasheet
MBA
Category Information

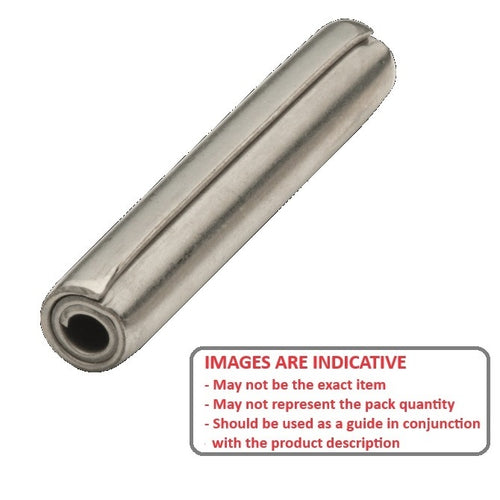

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Length
19.05
mm
+/- 0.25
(Equiv. 0.75 in.) - Drill Size
2.38 - 2.46
mm
(Equiv. 0.094 in.) - Loose Diameter 2.49 - 2.57 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 95765A225
- NoCor SPC3P-093-0750H
- SPC3P0930750H
