CBLC-238-304-NY - Datasheet
MBA
Category Information

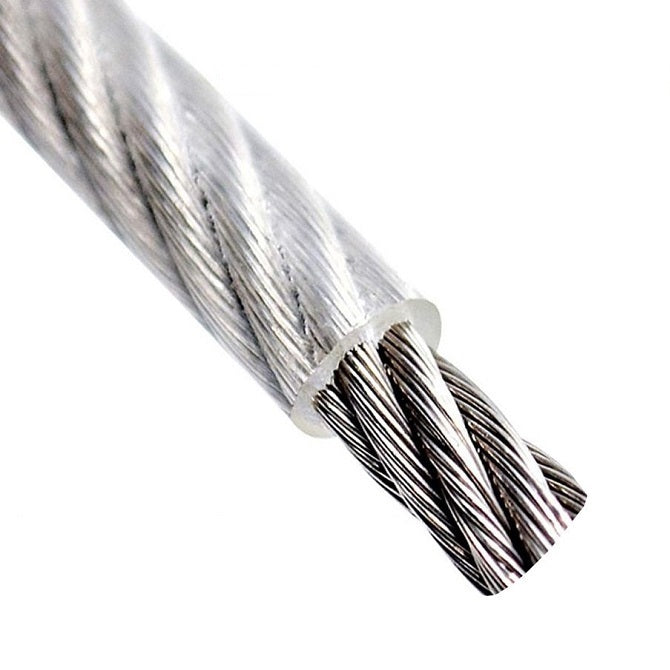

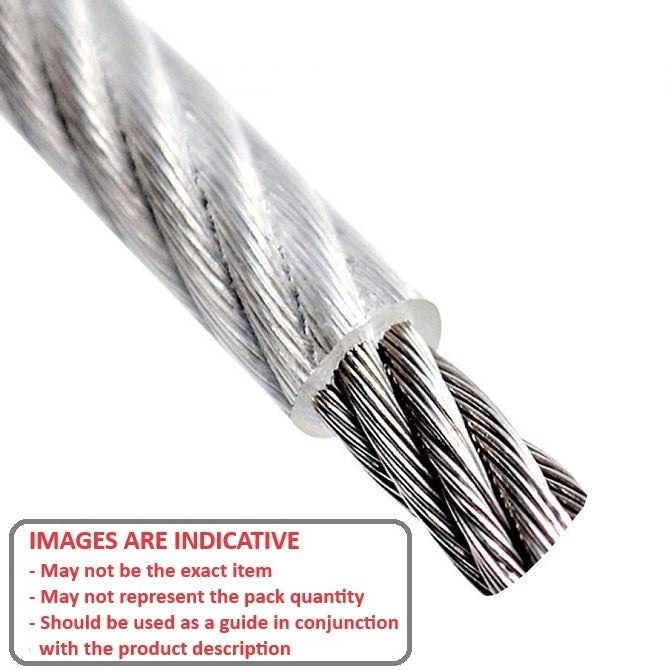

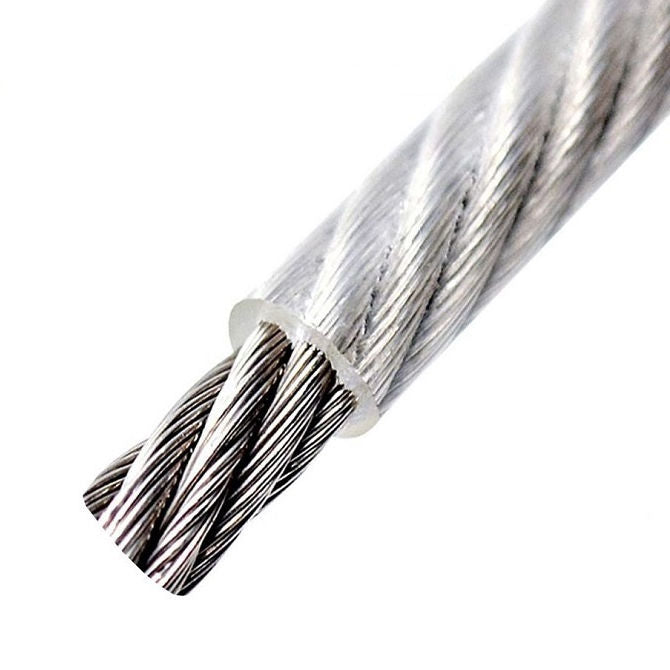

Cable and Accessories - Cable - Miniature - CoatedCoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Recommended that nylon coating is stripped prior to swaging.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

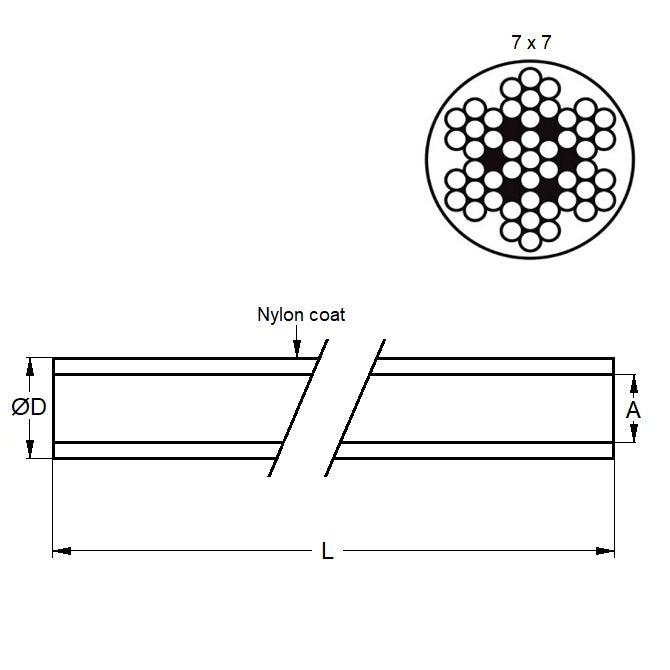

- Overall Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Cable Diameter (A)
1.58
mm
(Equiv. 0.062 in.) - Breaking Strength 214.0 kg
- Length 2m and 5m Length
- Coating Nylon
- Material Nylon Covered Stainless
Product Compliance and Data
Additional Resources
Cross References
- A 6X 9-094
- A6X9094
- A6X9-094
