CBLC-238-GAL-NY-77 - Datasheet
MBA
Category Information

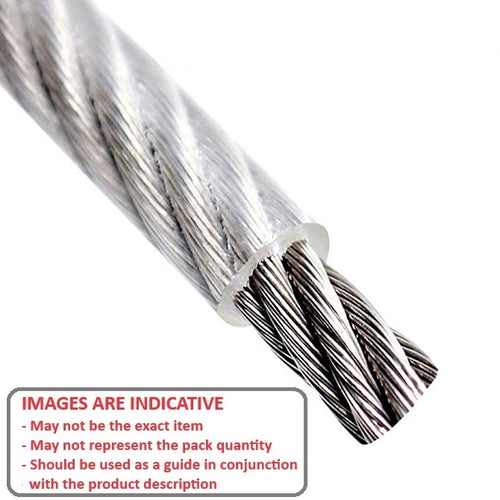

Cable and Accessories - Cable - Miniature - CoatedCoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Recommended that nylon coating is stripped prior to swaging.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.

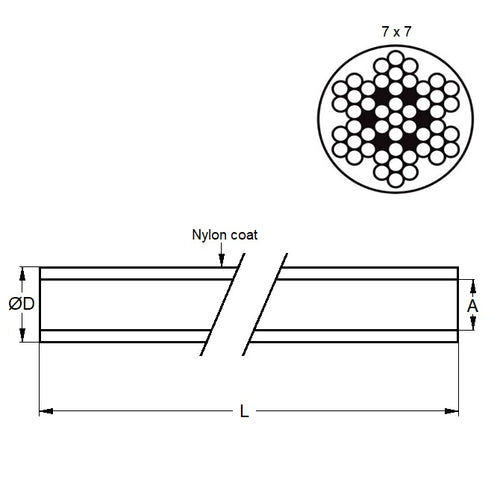

Product Data
- Overall Diameter
:
2.38
mm
(Equiv. 0.094 in.) - Cable Diameter (A)
1.588
mm
(Equiv. 0.063 in.) - Breaking Strength 217.7 kg
- Length 30 Mtr Roll
- Coating Clear Nylon
- Strand Type 7x7
- Material Clear Nylon over Galvanized Steel
Product Compliance and Data
Additional Resources
Cross References
- 3459T63
- CBL-1240
- CBL1240
