VD-3RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

  • Suitable Ball Diameter (d) : 2.383 mm
    (Equiv. 0.094 in.)
  • Diameter (D) 4.100 mm
    (Equiv. 0.161 in.)
  • Length (L) 4.750 mm
    (Equiv. 0.187 in.)
  • Hole Diameter (d1) 1.753
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A22
    View full details

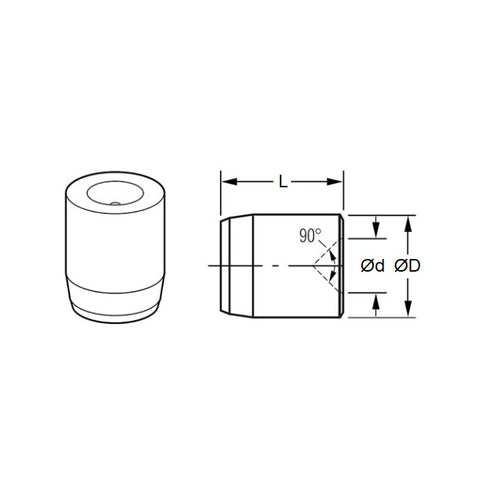

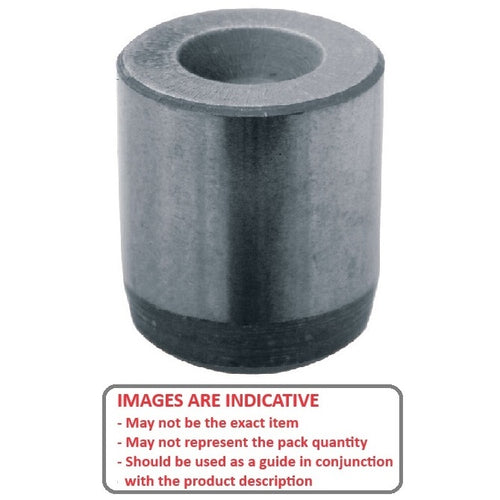

    VD-3RSDiagramVD-3RSImage
