DP024-010-416-1 - Datasheet
NoCor
Category Information

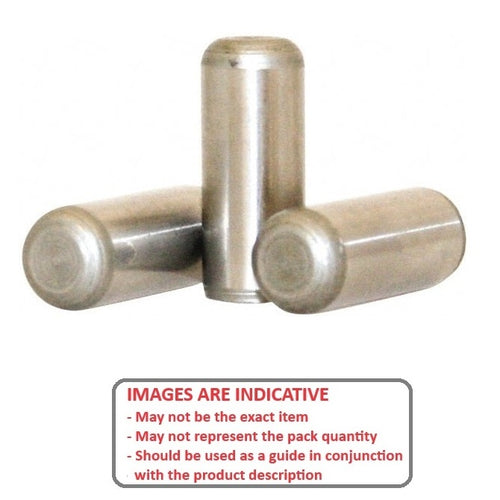

Pins - Dowel - Standard - Chamfered Ends - 416 Stainless416 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 416 Grade - Based on DIN6325 or ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
2.381
mm
+ 0.002 / + 0.008
(Equiv. 0.094 in.) - Length (L)
9.53
mm
+/- 0.254
(Equiv. 0.375 in.) - Approx. Overall Length
9.53
mm
+/ - 0.254
(Equiv. 0.375 in.) - Type 1 (Chamfer One End)
- Chamfer 0.40 x 15 Deg
- Standard Based on DIN 6325
- Material Stainless Steel AISI 416 Rc 36-42
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWS-094-0375
- DOWS0940375
- A9Y31-0312
- A9Y310312
