SWR133-MC34-GR7-R-L23 - Datasheet
Myonic
Category Information

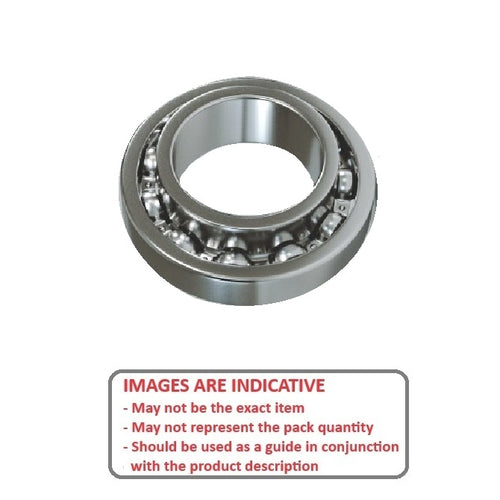

Bearings - Single Row Ball - Unflanged - High Precision - Extended InnerExtended Inner High Precision Unflanged Single Row Ball Bearings. Stainless Steel Bearings - Abec 5 and Abec 7. Single row radial ball bearings with extended inner ring (wide inner ring).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
- High precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

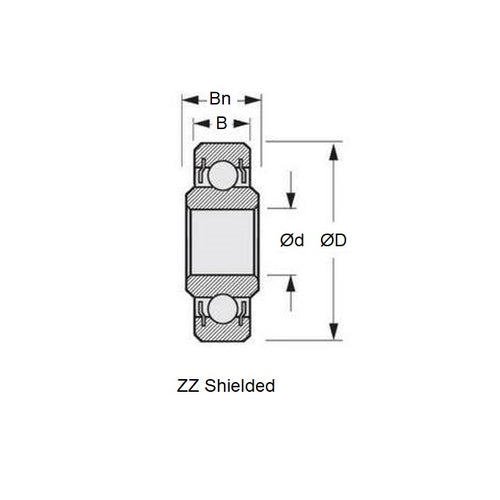

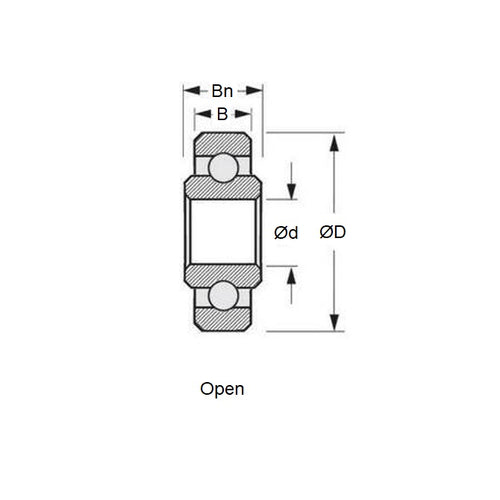

- ID (d)
:
2.381
mm
+ 0.000 / - 0.004
(Equiv. 0.094 in.) - OD (D)
4.763
mm
+ 0.000 / - 0.005
(Equiv. 0.188 in.) - Width (B)
1.588
mm
+ 0.000 / - 0.040
(Equiv. 0.063 in.) - Inner Ring Width (Bn) 2.381 mm
- Precision Grade Abec 7
- Closure Type Open
- Bearing Type Radial with Extended Inner
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part WR133
- Limiting Speed 123500
- Cage Type Ribbon
- Static Load Rating KGf 6
- Dynamic Load Rating KGf 19
- Radii 0.10 mm
- Inner Shoulder (UI) 2.98mm
- Outer Shoulder (UO) 4.13 mm
- Number of Balls 7
- Clearance MC34 (5 to 10)
- Precision Grade Abec 7
- Closure Type Open
- Max Temperature 170 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- GRW E2380-P4
- GRW SE2380-P4
- P4RW133
- P4SRW133
- P4-RW133
- P4-SRW133
- WR133
- SWR133RGR7MC34L23
- SWR133MC3GR7L23
- SE2380P4
- ULU3006X-A7P-L23
- ULU3006X48A7P6/15L23
- ULU-3006X-48-A7P-6/15-L23
- ULU3006XA7PL23
- WR133 Basic Size Ref
