SWR133-MC34-GR5-R-L23 - Datasheet
Myonic
Category Information
Bearings - Single Row Ball - Unflanged - High Precision - Extended InnerExtended Inner High Precision Unflanged Single Row Ball Bearings. Stainless Steel Bearings - Abec 5 and Abec 7. Single row radial ball bearings with extended inner ring (wide inner ring).
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- If the size you require is not available, you might consider using a standard bearing with shim washers.
- High precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data

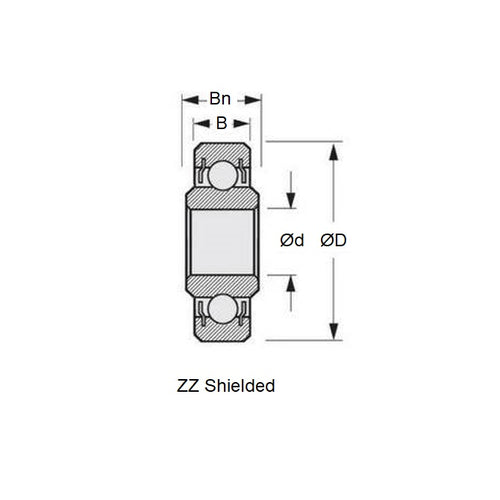

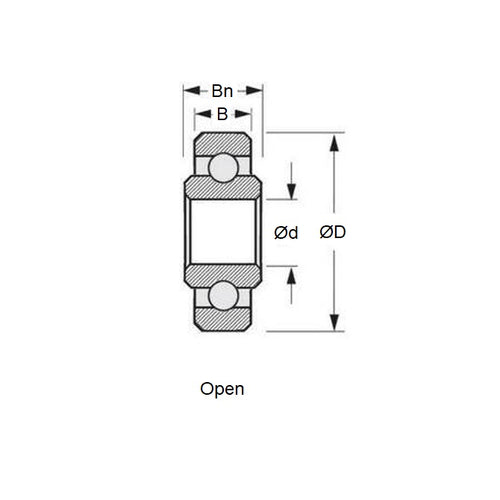

- ID (d)
:
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.) - OD (D)
4.763
mm
+ 0.000 / - 0.005
(Equiv. 0.188 in.) - Width (B)
1.588
mm
+ 0.000 / - 0.040
(Equiv. 0.063 in.) - Inner Ring Width (Bn) 2.381 mm
- Precision Grade Abec 5
- Closure Type Open
- Bearing Type Radial with Extended Inner
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part WR133
- Limiting Speed 114000
- Cage Type Ribbon
- Static Load Rating KGf 6
- Dynamic Load Rating KGf 19
- Radii 0.10 mm
- Inner Shoulder (UI) 2.98mm
- Outer Shoulder (UO) 4.13 mm
- Number of Balls 7
- Clearance MC34 (5 to 10)
- Precision Grade Abec 5
- Closure Type Open
- Max Temperature 170 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- MPB 3332CE
- MPB 3332RE
- GRW E2380
- GRW E2380-P5
- GRW E2380-P6
- ADR LAX3-32
- Similar Part LAX3-32
- NHBB R1-3332EE
- NHBB R133EE
- FAG RE0612
- Similar Part RE0612
- MPB S3332CE
- MPB S3332RE
- GRW SE2380
- GRW SE2380-P5
- NHBB SSR1-3332EE
- NHBB SSR133EE
- ADR WLAX3-32
- Similar Part WLAX3-32
- P6-RW133
- P6RW133
- P5SRW133
- P5-SRW133
- P5-RW133
- P5RW133
- WR133
- WLAX332
- SWR133RGR5MC34L23
- SWR133MC3GR5L23
- SS-R1-3332EE
- SSR13332EE
- DD-R1-3332EE
- DDR1-3332EE
- DDR13332EE
- SE2380P5
- ULU3006X48A5P6/15L23
- ULU3006X-A5P-L23
- ULU-3006X-48-A5P-6/15-L23
- ULU3006XA5PL23
- E2380P6
- WR133 Basic Size Ref
