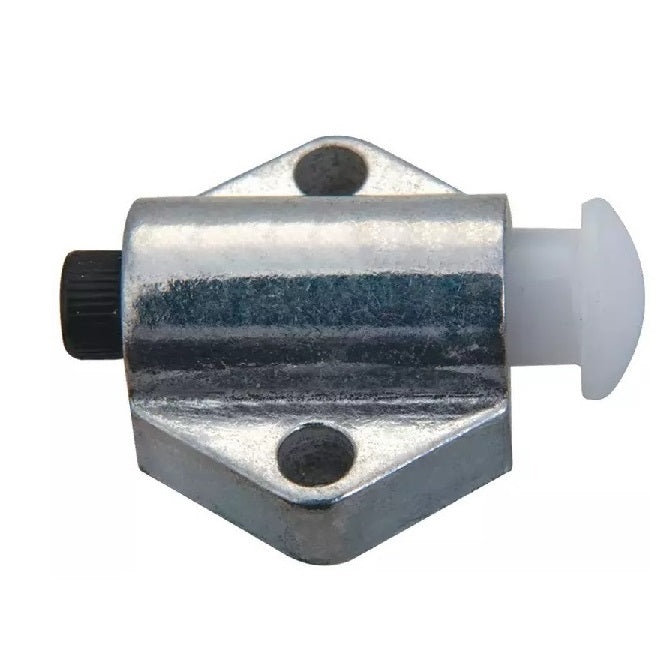

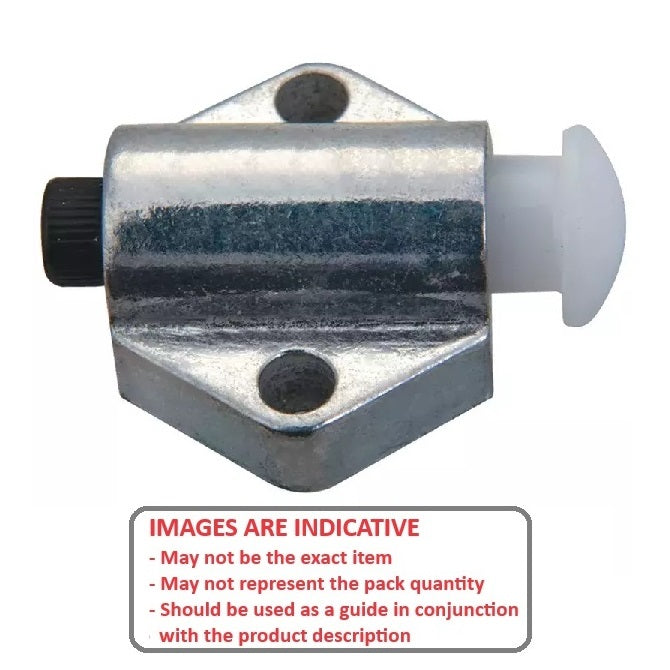

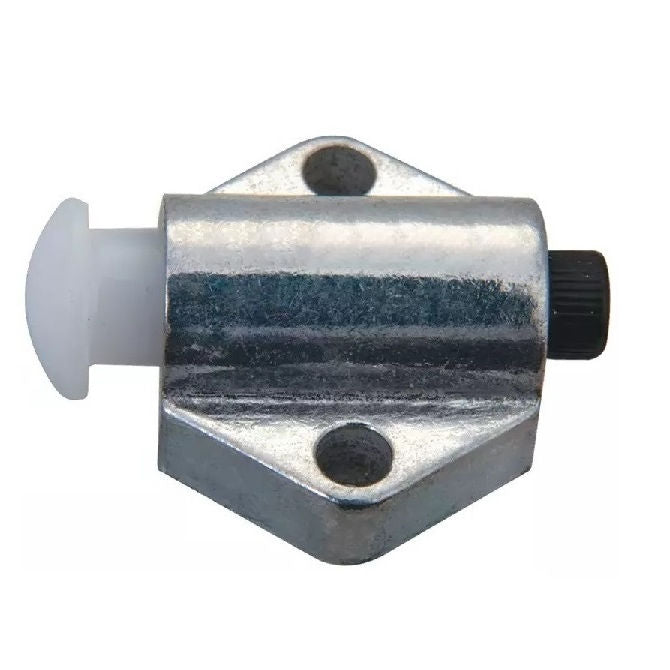

Stops - Spring - Round - Acetal NoseAcetal Nose Round Spring Stops. Round acetal nose selection.
- Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
- Properly radiused nose for perfect fit with no wobble.
- Plunger is case hardened low carbon steel. Aluminium body.
Product Data
- Initial End Force : 2.33 Kg
- Final End Force 6.61 Kg

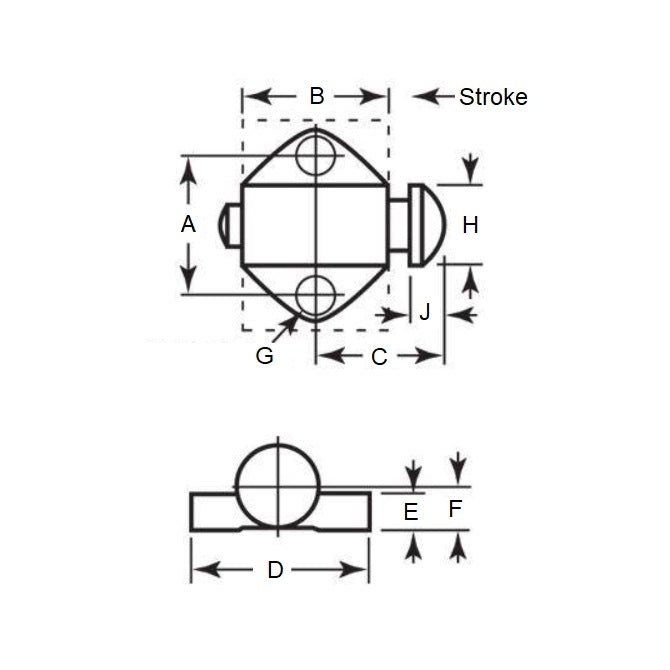

- A 16.67 mm
- B 17.46 mm
- C 15.08 mm
- D 22.23 mm
- F 5.56 mm
- G No.29 mm
- H 9.53 mm
- E / J 4.76 / 3.18 mm
- Base Style Triangular
