STP310220060S - Datasheet

MBA

Category Information

Screws - Self Tapping - Soft Plastics - Pan Head

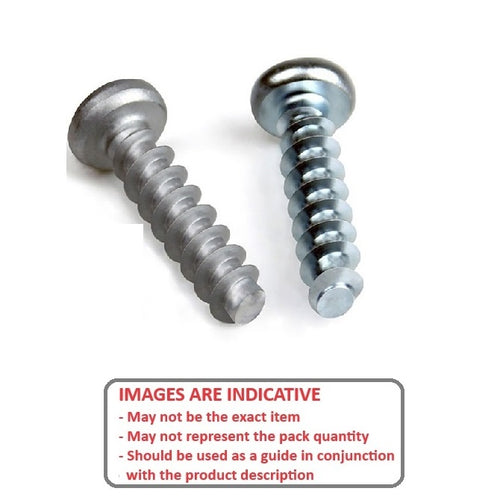

Pan Head Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws

  • Thread cutting screws for plastics
  • Be sure to select correct screw for hard or soft plastic threadcutting

Product Data

  • Approx Diameter : 2.2 mm
    (Equiv. 0.087 in.)
  • Thread Length (L) 6.0 mm
    (Equiv. 0.236 in.)
  • Gauge 2
  • Drive Type Phillips
  • Head Diameter 5.0 (Round Washer Head) mm
  • Type Course Threadcutting For Soft Plastics
  • Notes Zinc-plated 5-7 um, baked, blue / transparent passivated
  • Material Steel, hardened 10.9
Country of Origin: DE

Product Compliance and Data

Additional Resources

View full details

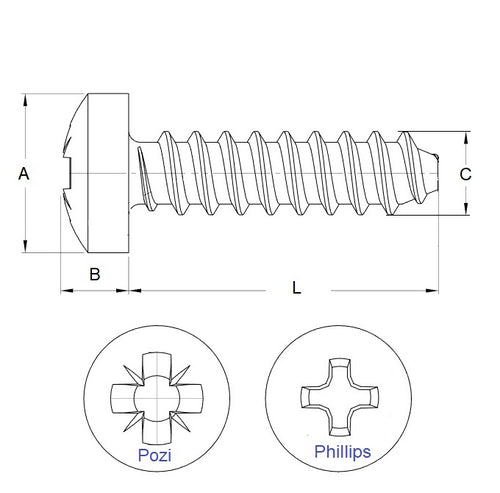

STP310220060SDiagramSTP310220060SImage
