SC-4335RS - Datasheet

MBA

Category Information

Catches - Snap In Style

Snap In Style Catches. Fast economical installation.

  • Fits frames from 1.1 to 7.1mm thick.
  • Installation hole size 15mm x 39.9mm
  • Push to close and pull to open.
  • Spring loaded over centre action.
  • Corrosion resistant black ABS with 303 stainless steel spring.

Product Data

  • Pull Up Force : 2.23
  • Min Panel Thickness 1.092
  • Max Panel Thickness 2.896
Country of Origin: US

Product Compliance and Data

Additional Resources

    View full details

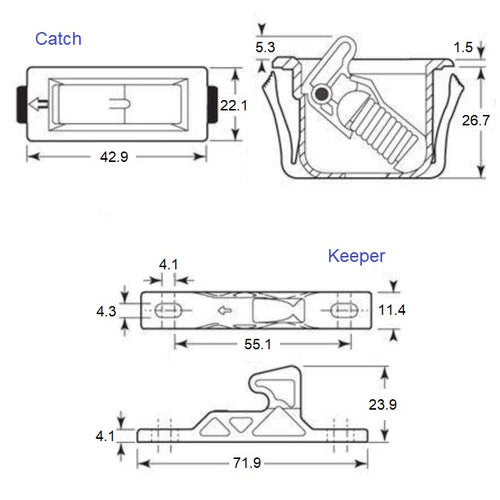

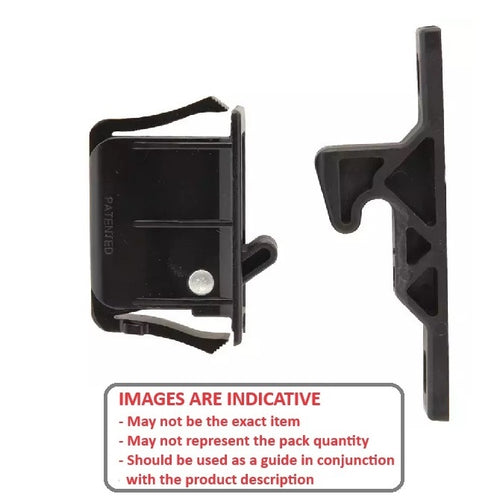

    SC-4335RSDiagramSC-4335RSImage
