DVT2-1845-HCH - Datasheet
MBA
Category Information

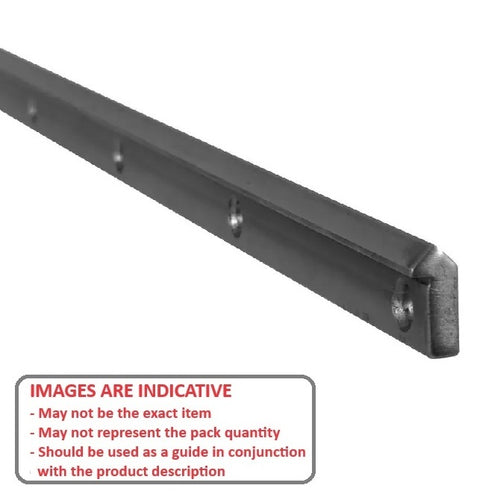

Dual Vee - Tracks - SteelSteel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.
- Match Track Size with same size Guide Wheel.
Product Data
- Track Size : 2

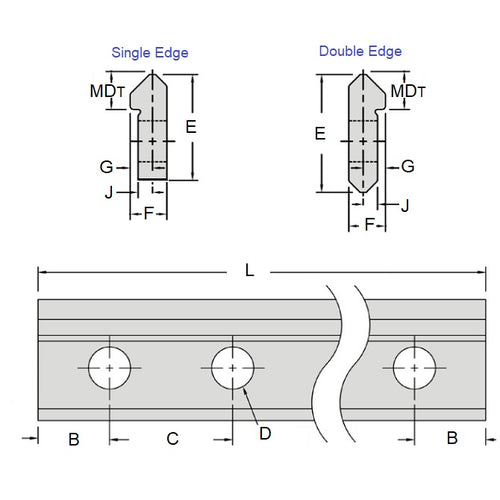

- Overall Length (L)
1844.8
mm
(Equiv. 72.63 in.) - Overall Width (F)
6.35
mm
(Equiv. 0.25 in.) - Height (E / MDT) 15.88 / 4.75 mm
- Type Single Edged
- Hole Spacing (C) 76.2 mm
- Number of Holes 25 (5.16mm)
- End Hole Spacing (B) 7.87 mm
- Condition Hardened Rc 58 - 60
- Material Carbon Steel AISI 1045
Product Compliance and Data
Additional Resources
Cross References
- WZ39
- WZ-39
- A7Q15M27263
