HDP021-08R-S4 - Datasheet

NoCor

Category Information

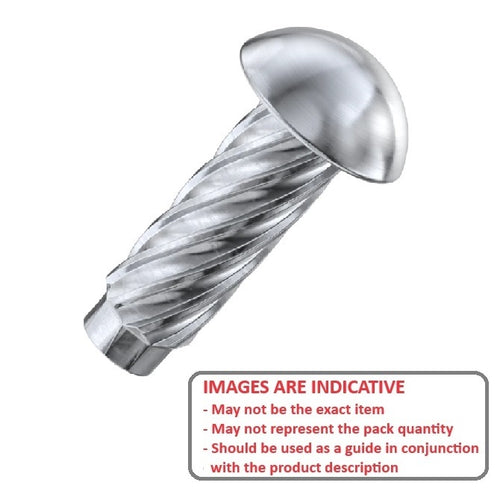

Pins - Hammer Drive - Round Head Stainless Steel

Round Head Stainless Steel Hammer Drive Pins. Used to replace screws where the need to remove the pin is unlikely.

  • Stainless Steel 304 Grade
  • Simple, low cost assembly.
  • Secure - unlike a machine screw, a drive stud does not depend on tightening torque to be retained in the assembly.
  • Drive studs do not require lock washers to prevent back-out.
  • Designed for standard metric hole sizes and installation by hammer or press. Cold formed pins with helical knurls.

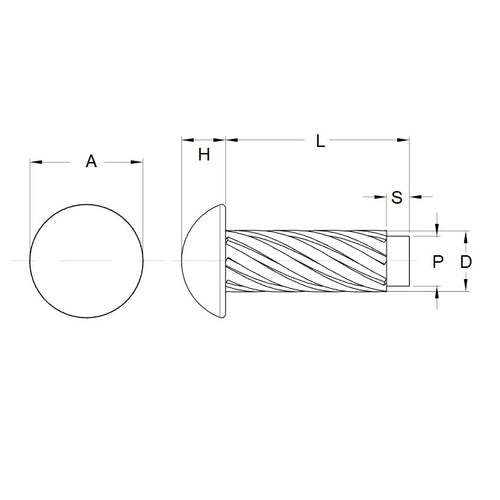

Product Data

  • Min Hole Diameter : 2.10 mm
    (Equiv. 0.083 in.)
  • Approx. Length (l) 7.9 mm
    (Equiv. 0.311 in.)
  • Max Hole Dia. 2.18 mm
    (Equiv. 0.086 in.)
  • Approx Pin Diameter (d1) 2.54 mm
  • Max Head Diameter (d2) 4.10 mm
  • Max Head Thickness (h) 1.75 mm
  • Nom. Pilot Length 1.2 mm
  • Material Stainless Steel
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best V93089
