RT-090-0600-060-120-H - Datasheet

MBA

Category Information

Ratchets and Pawls - Ratchets - Without Hub

Without Hub Ratchets Ratchets and Pawls. Match with pawls listed on this site.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Pitch : 2.094 CP
  • Teeth (No.) 90
  • Outside Diameter 60 mm
    (Equiv. 2.362 in.)
  • Bore Pilot 12 mm
  • Face Width 6 mm
  • Additional Info Pawl ordered separately
  • Info No Keyway
  • Material Carbon Steel - Hardened 48-53 HRC
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • A1C14M23090A
    View full details

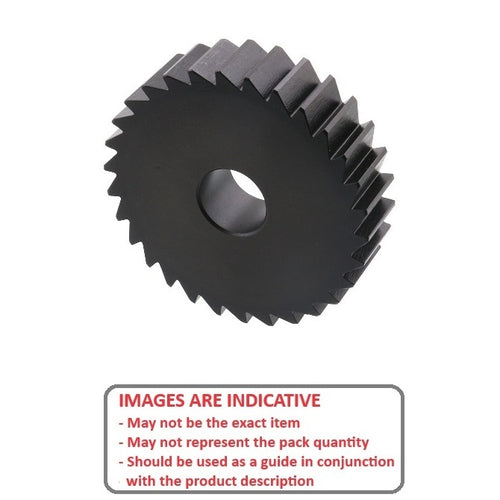

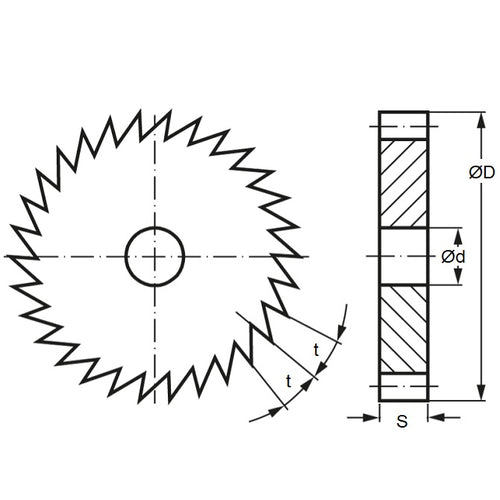

    RT-090-0600-060-120-HDiagramRT-090-0600-060-120-HImage
