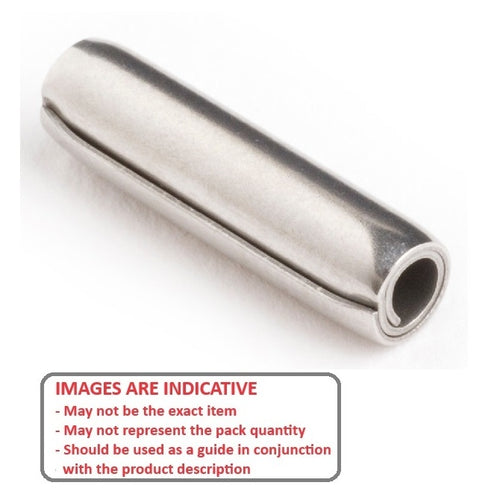

PSP-010-006-S2 - Datasheet

MBA

Product Data

• Nominal Hole Diameter : 1.00 mm
  (Equiv. 0.039 in.)
• Length 6.00 mm _{+/- 0.25}
  (Equiv. 0.236 in.)
• Drill Size 1.00 - 1.04 mm
  (Equiv. 0.039 in.)
• Loose Diameter 1.05 - 1.15 mm
• ISO Standard Duty ISO8750 / ASME B18.8.3M
• Hardness Unhardened
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Master Pins Catalogue PDF

• Roll Pins


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 91612A103
• EP1-6
• EP16
