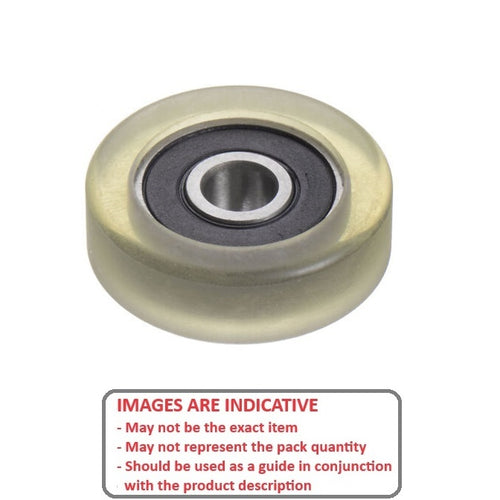

PR-0190-060-ZZ-UR-60 - Datasheet
MBA
Category Information
Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

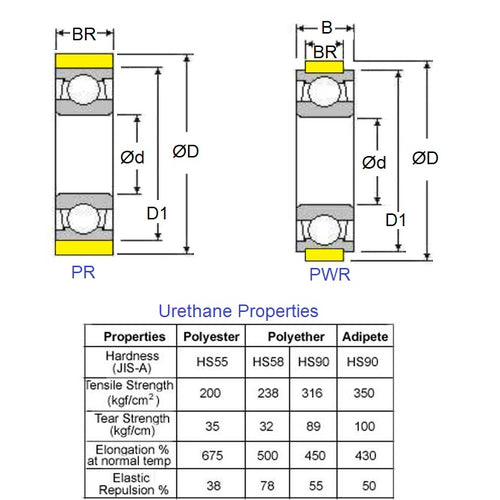

- OD (D)
:
19.000
mm
+/- 0.1
(Equiv. 0.748 in.) - ID (d)
6.000
mm
(Equiv. 0.236 in.) - Width (B)
5.000
mm
(Equiv. 0.197 in.) - Roller Width (BR) 5.000 mm
- Bearing Outside Diameter (D1) 13.000 mm
- Roller Material 60 Duro Urethane - Natural
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- A7Z8MURBB1906
