PR-0190-060-2RS-ET-90 - Datasheet

MBA

Category Information

Rollers - Pressure Roller with Bearing - Urethane OD

Urethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.

  • For applications including paper and card dispensing and rolling (eg ATM Machines).

Product Data

  • OD (D) : 19.00 mm
    (Equiv. 0.748 in.)
  • ID (d) 6.00 mm
    (Equiv. 0.236 in.)
  • Width (B) 5.00 mm
    (Equiv. 0.197 in.)
  • Roller Width (BR) 5.00 mm
  • Bearing Outside Diameter (D1) 15.00 mm
  • Roller Material 90 Duro (JIS-A) Polyether Based Urethane - Natural
  • Closures 2RS Rubber Sealed
  • Bearing Type Pressure Roller
  • Material Chrome Steel SAE 52100
Country of Origin: TW

Product Compliance and Data

Additional Resources

View full details

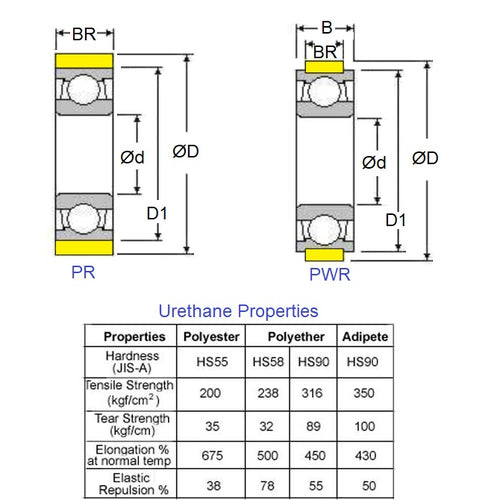

PR-0190-060-2RS-ET-90DiagramPR-0190-060-2RS-ET-90Image
