PR-0190-050-ZZ-ET-90 - Datasheet
ENQUIRE
Category Information

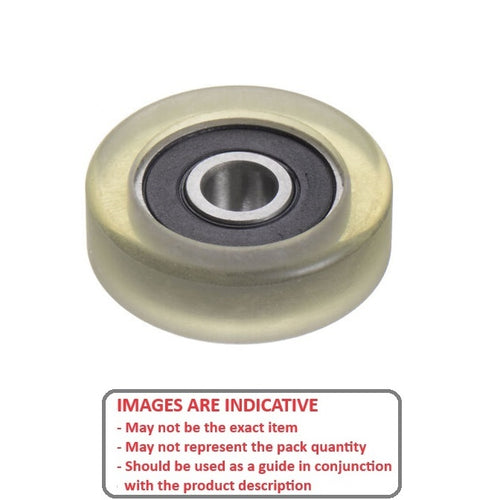

Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

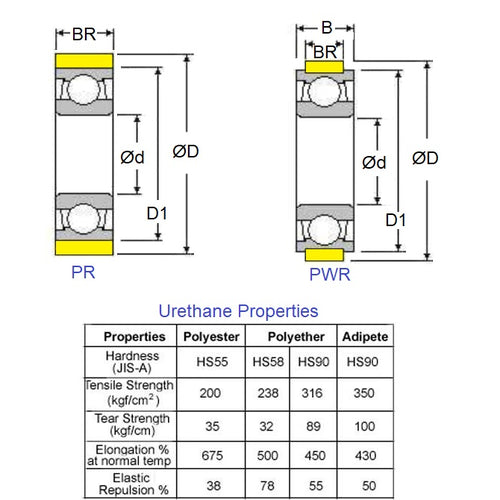

- OD (D)
:
19.000
mm
+/- 0.1
(Equiv. 0.748 in.) - ID (d) 5.000 mm
- Width (B) 5.000 mm
- Roller Width (BR) 5.000 mm
- Bearing Outside Diameter (D1) 16.000 mm
- Roller Material 90 Duro (JIS-A) Polyether Based Urethane - Natural
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- Origin® SS5-19RM-ZZHS90
- SS519RMZZHS90
