P-100T-019-160A - Datasheet
MBA
Category Information

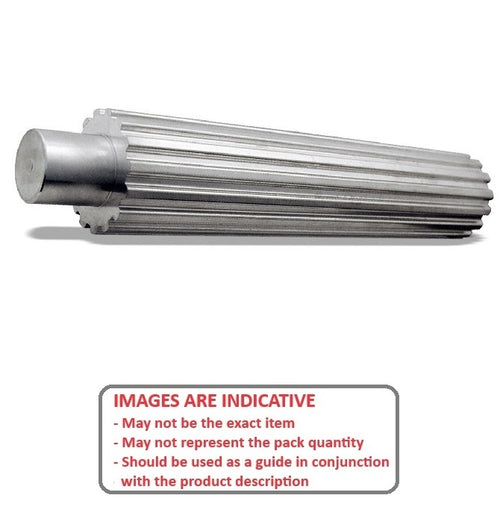

Pulleys - Metric Timing Stock - 10.000mm Pitch - T10 AluminiumT10 Aluminium 10.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 19
- Min. Usable Length (L)
160.0
mm
(Equiv. 6.299 in.) - Pitch Diameter (PD)
58.60
mm
(Equiv. 2.307 in.) - Outside Diameter (OD) 58.60 mm
- Shank Diameter (D1) 19.10 mm
- Shank Length (Sl) 25.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 19T10-PS160A
- 19T10PS160A
- A6A38M019T16
