MMI-1996-H - Datasheet
MBA
Category Information

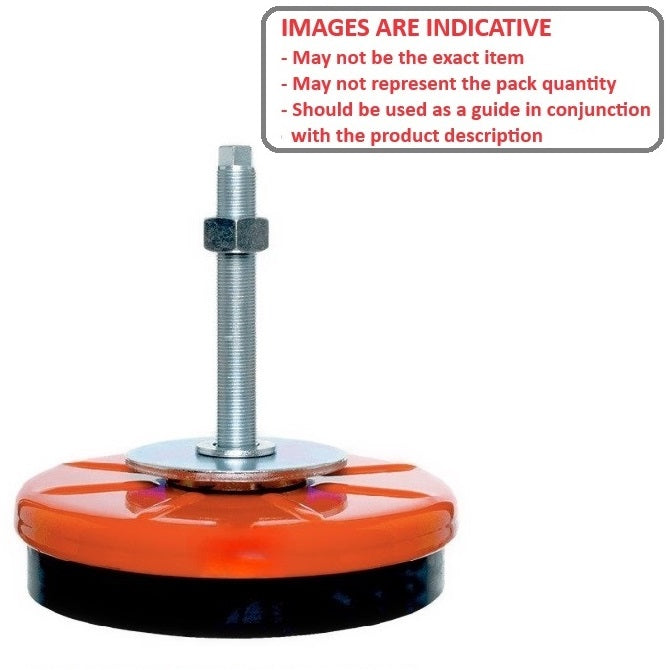

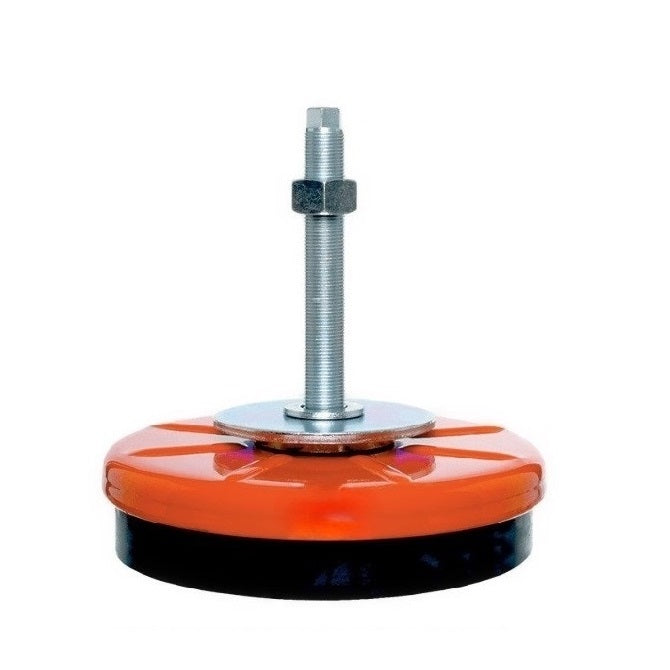

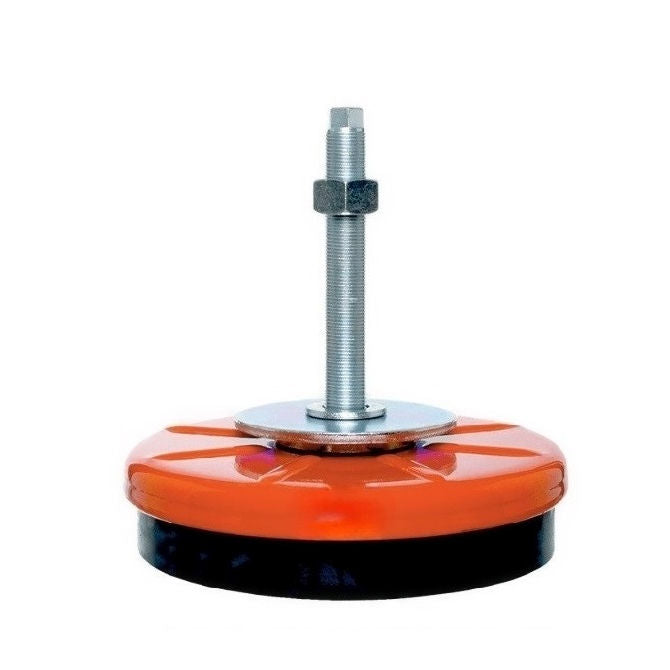

Mounts - Machinery Industrial - Heavy DutyHeavy Duty Machinery Industrial Mounts. High strength machined components. Rapid installation and leveling. 80% vibration reduction. Vertical and horizontal isolation.
- For milling mchines, presses, injection molding, packaging machines.
- Industrial machine mount designed with high strength construction for reduction of both shock and vibration.
- Prevents vibration from affecting other machines and protects mounted equipment from external vibration effects.
- Provides precision leveling with large support plate and meets OSHA standards by preventing machinery walking.
Product Data
- Load Capacity : 1995.8 Kg

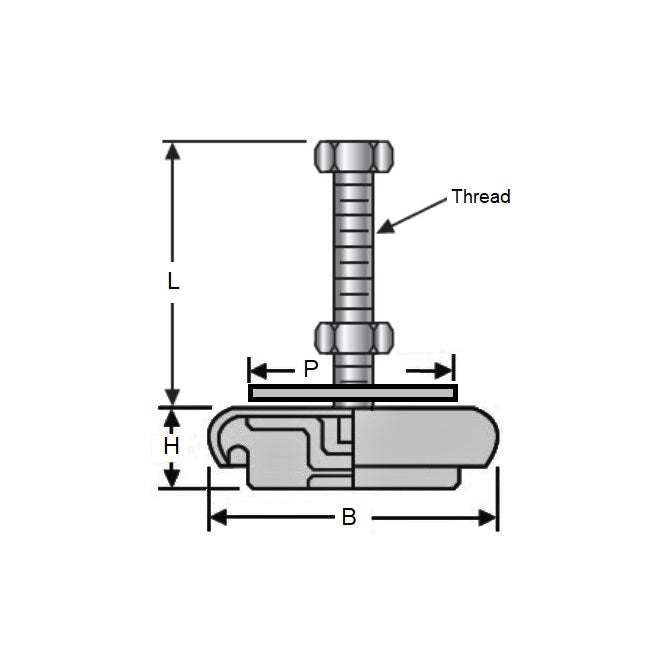

- Base Diameter
158.750
mm
(Equiv. 6.25 in.) - Plate Diameter
100.076
mm
(Equiv. 3.94 in.) - Height 53.086 mm
- Adjustment 14.986 mm
- Thread Size M20-1.5
- Thread Length 168.275 mm
- Non-Impact Machinery Load 1995.805 Kg
- 125 Strokes per Min Load 1088.621 Kg
- 180 Strokes per Min Load 861.825 Kg
- 200 Strokes per Min Load 635.029 Kg
- Material Rubber and Steel
Product Compliance and Data
Additional Resources
Cross References
- SX3A
- SX-3A
