CP-064-HUB-G-PR-20 - Datasheet

MBA

Category Information

Couplings - Geargrip - Precision Hubs

Precision Hubs Geargrip Couplings. Match with sleeves from sleeves category

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Bore : 6.350 mm
    (Equiv. 0.25 in.)
  • Sleeve OD For Sleeve OD 19.81 mm
  • Overall Length Assembled When Complete 25.40 mm
  • Description Single Hub Only
  • Hub Protrusion Assembled 5.588 mm
  • Number of Teeth 8 Nr.
  • Hub Length 12.700 mm
  • Hub Diameter (C) 17.780 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • GU2103
    • GU-2103
    View full details

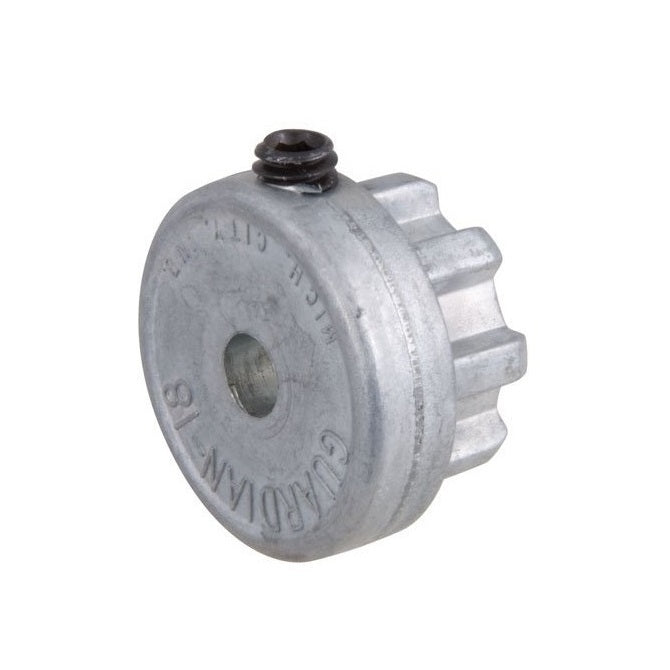

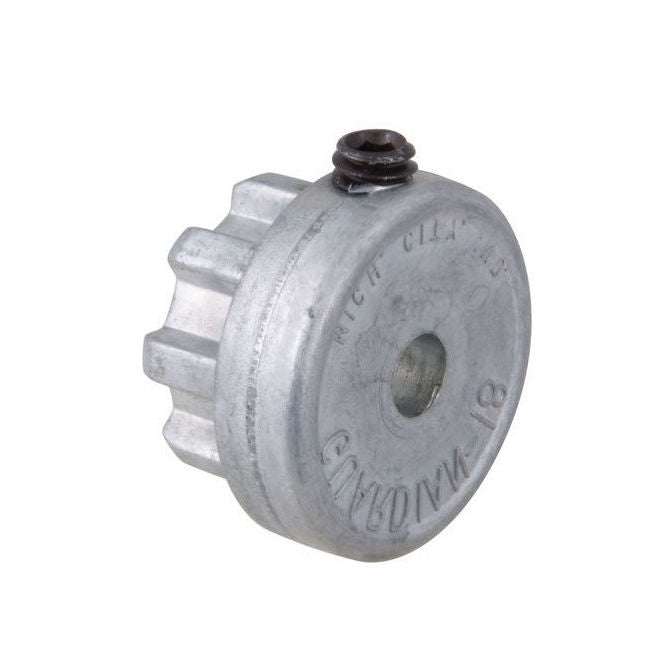

    CP-064-HUB-G-PR-20DiagramCP-064-HUB-G-PR-20Image
