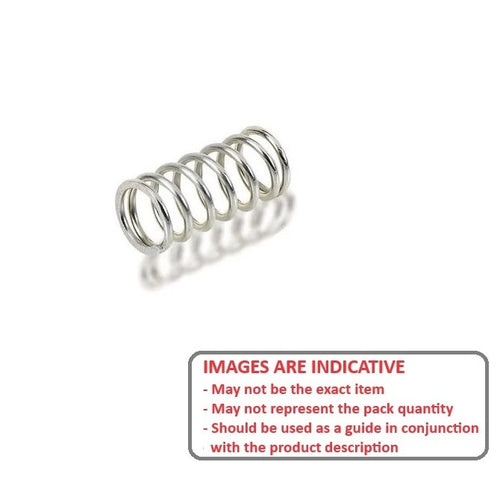

CS-1960-0350-18-S4-G - Datasheet

MBA

Category Information

Springs - Compression - Stainless Steel

Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 19.60 mm
  • Free Length (L0) 35.0 mm
  • Wire Diameter (d) 1.80 mm
  • Loaded Height (L1) 22.75 mm
  • Load at L1 35.97 N
  • Rate (P/f) 2.9 N/mm
  • Solid Height (Sh) 14.40 mm
  • Approx. ID 16.0 mm
  • End Type Closed Ground Flush
  • Max Rod Dia. (A) 16.00 mm
  • Material SUSS304-WPB / JIS Standard
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi® C-VUM16-35
  • CVUM1635
